FEATURES
Universal zoom motor

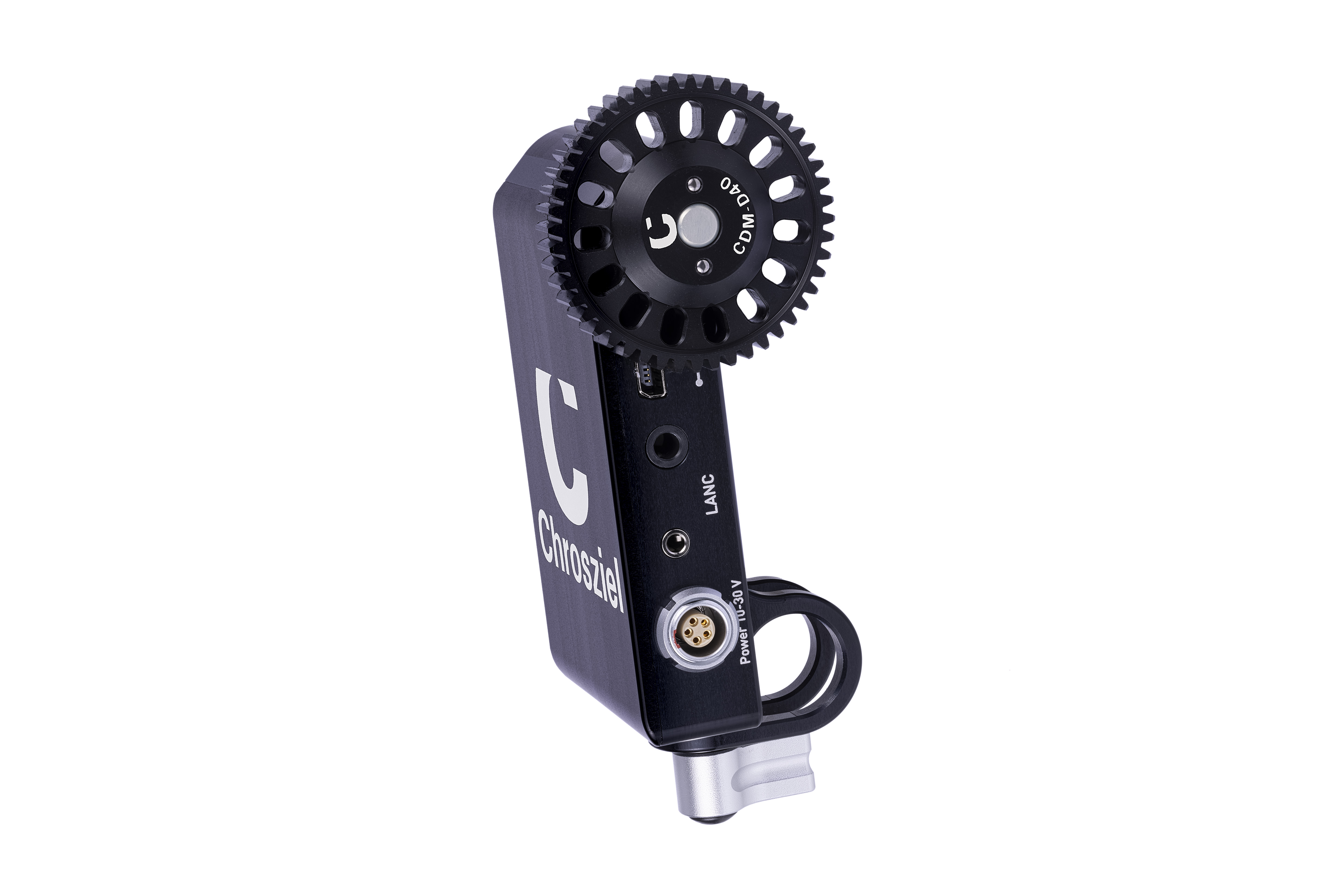

The Zoomer is a compact and universal zoom motor that can be pivoted to almost any lens by simply mounting it on a 15mm rod.

Controlled via Sony and Digtial LANC handgrip
The Sony FX6 / FX9 / FS5 / FS7 handgrip zoom rocker controls directly the servo drive unit. Other zoom rockers with digital LANC protocol are compatible too, e.g. mounted handgrip.

Camera control signals forwarded
Control commands are immediately looped through to the camera (e.g. menu / user buttons / focus magnification / camera run & stop).

Panasonic DC-BS1H & DC-BGH1 box cameras
A recent firmware updated has made the CDM-UNI-Z2 compatible with the Panasonic BS1H and BGH-1 box cinema cameras when used with a Manfrotto MVR901EPLA and MVR901ECLA control handles as well as the digital LANC Libec ZFC-L and ZC-LP zoom controllers.

TECHNICAL DATA
Power supply 10-30V (Lemo compatible 0B 5-pin)
2.5mm socket (control command In)
3.5mm socket (control command In&Out)
USB Type min A-B (firmware updates)
Torque 0.5Nm
Power consumption max. approx. 350mAh @ 12V

IN THE BOX
1x CDM-UNI-Z2 Digital motor unit
1x LANC cable
1x LANC extension cable
1x MN-AB-A90 (power supply cable 12 Volt A/B D-Tap – angled 90° rotated 0B 5pin)
1x 206-30 Flexi Gear Ring (Ø 60-120mm)
1x Gear Drive, mod. 0.8 (Ø 40mm)
1x CAB-FX9 for Sony PXW-FX9 compatibility
1x CAB-FX6 for Sony PXW-FX6 compatibility
USB Mini Adapter
