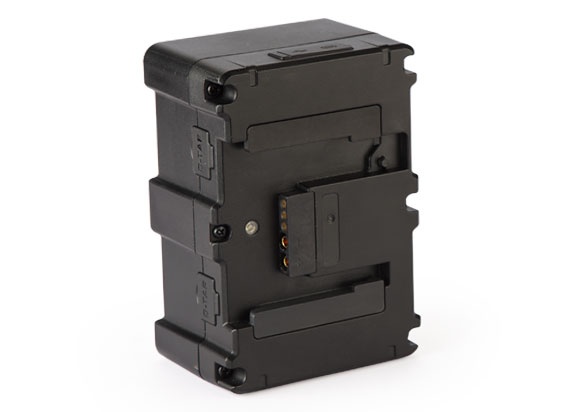

ARRI Standard B-mount Battery
The B-mount battery interface is a new industry standard endorsed by ARRI and the wider industry with high voltage support and reliable lock system especially for filmmaker.
290Wh Large Capacity
HB-A290B battery has 290Wh / 10.05Ah large capacity, and at least 250W / 10A constant high load for cine cameras and devices.

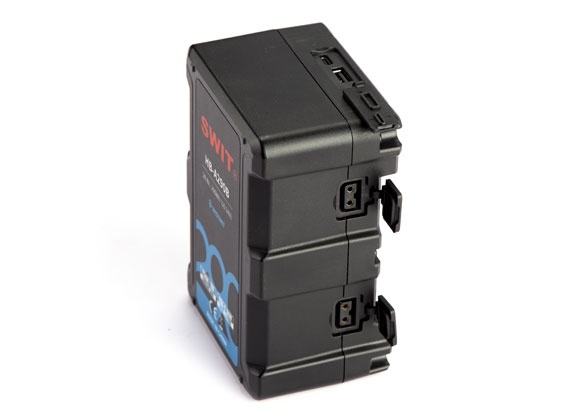

D-tap, USB-A and USB-C
HB-A290B still provides with
2x D-tap of regulated 16V, 60W/3.8A load;
1x USB-A 5V/2A;
1x USB-C 60W input and 60W output
USB-C 60W Charging Input
HB-A290B battery can be charged by USB-C charger, supports PD 15V 3A and 20V 3A, which means you can fully charge the 290Wh battery within 5.5 hours.
LED Flash Light
You can double press the Power Check button to switch on LED flash light on the rear side of the battery, to help you to find B-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.
1.2 meters Drop-off Proof
HB-A290B battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
› 28.8V ARRI Standard B-mount
› 290Wh/10.05Ah high capacity
› 250W, 10A constant high load
› 100W/3A fast charging
› D-tap 16V reg. output ×2
› USB-C 60W input and output
› USB-A 5V/2A output

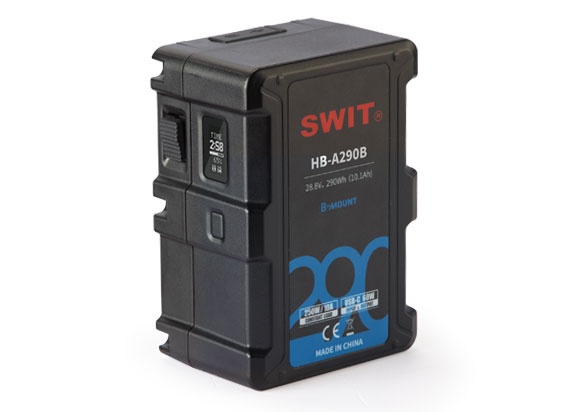

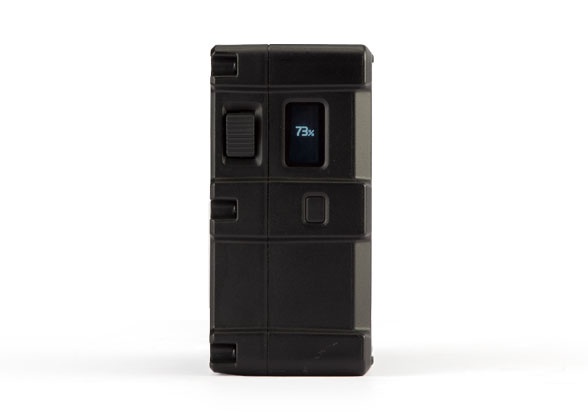

› OLED power info display
› Built-in LED flash light
› Strong 1.2m drop off proof
› Multiple circuit protections
