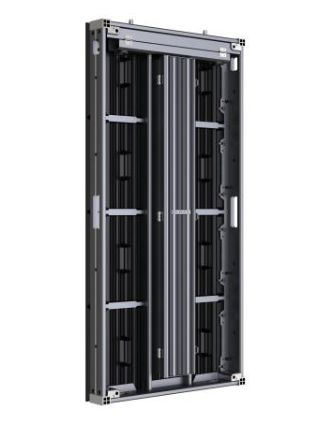

Cabinet
Pixel Configuration: SMD Triad LED
Pixel Pitch Category: P3.9
Pixel Pitch: 3.91 mm
Modules Component: 1 × 4
Dimensions (W × H × D):
500 mm × 1000 mm × 97 mm（19.69" × 39.37" × 3.82"）
Resolution: 128 × 256
Area: 0.5 m²,18.24 kg
Pixel Density: 65536 dots/m²
Lamp Board Housing With housing
Cabinet Material: Aluminum Profile
Maintenance Method: Front and Rear maintenance
Cabinet Flatness: 0.8 mm
Protection Level: IP66

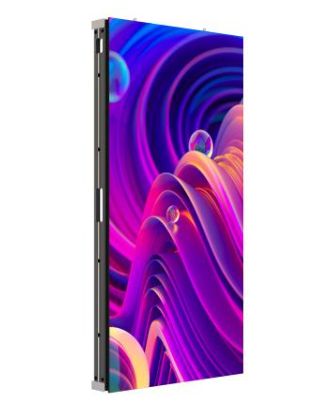

Display
White Balance Brightness:
4500 nit (Factory preset brightness)
5000 nit (Peak)
Color Temperature: 9300K adjustable
Viewing Angle: Horizontal 160°, vertical 128°
Contrast Ratio: ≥ 5000:1
Color Uniformity: ≤ ± 0.004Cx，Cy
Brightness Uniformity: ≥ 95％

Processing Performance
Driving Method: Constant current driving
Frame Frequency: 50/60 Hz
Refresh Rate: Up to 3840 Hz
Grey Level: 14 bit adjustable

Key Material
Control System: Hikvision

Power
Power Supply: 110 to 220 VAC ± 15%
Max. Consumption: ≤ 508 W/㎡ （5000nits）
Average Consumption: ≤ 170 W/㎡ （5000nits）

Working Environment
Working Temperature: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working Humidity: 10%~95%RH (No condensation)
Storage Humidity: 10%~90%RH (No condensation)
Storage Temperature: -40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)
Relative Humidity:
Notice：If used in the following scenarios, please communicate with headquarters for customization：1）Seaside 2）Swimming pool 3）Ambient temperature ≤-40℃

General
Gross Weight: 20.6 Kg/1 in 1
Package Dimension (W × H × D):
1108 mm × 165 mm × 606 mm（38.25" × 6.50" × 23.86"）
Packing List:
Three-in-one document (Certificate of Conformity / Warranty Card / Material Safety Data Sheet), accessory list × 1
Lifespan: Lamp 100,000 hours
