SWIT Mino-S140 USB-C, tiny size with 140Wh pocket mini batte
SWIT Mino-S140 USB-C, tiny size with 140Wh pocket mini batte
SWIT Mino-S140 USB-C, tiny size with 140Wh pocket mini batte
SWIT Mino-S140 USB-C, tiny size with 140Wh pocket mini batte

SWIT Mino-S140 USB-C, tiny size with 140Wh pocket mini batte

Tuotekoodi: Mino-S140

Kysy saatavuus

Toimituskulut alkaen 9,00 €
Tai nouto myymälästä 0 €

389,00 €

488,20 € (ALV 25.50 %)

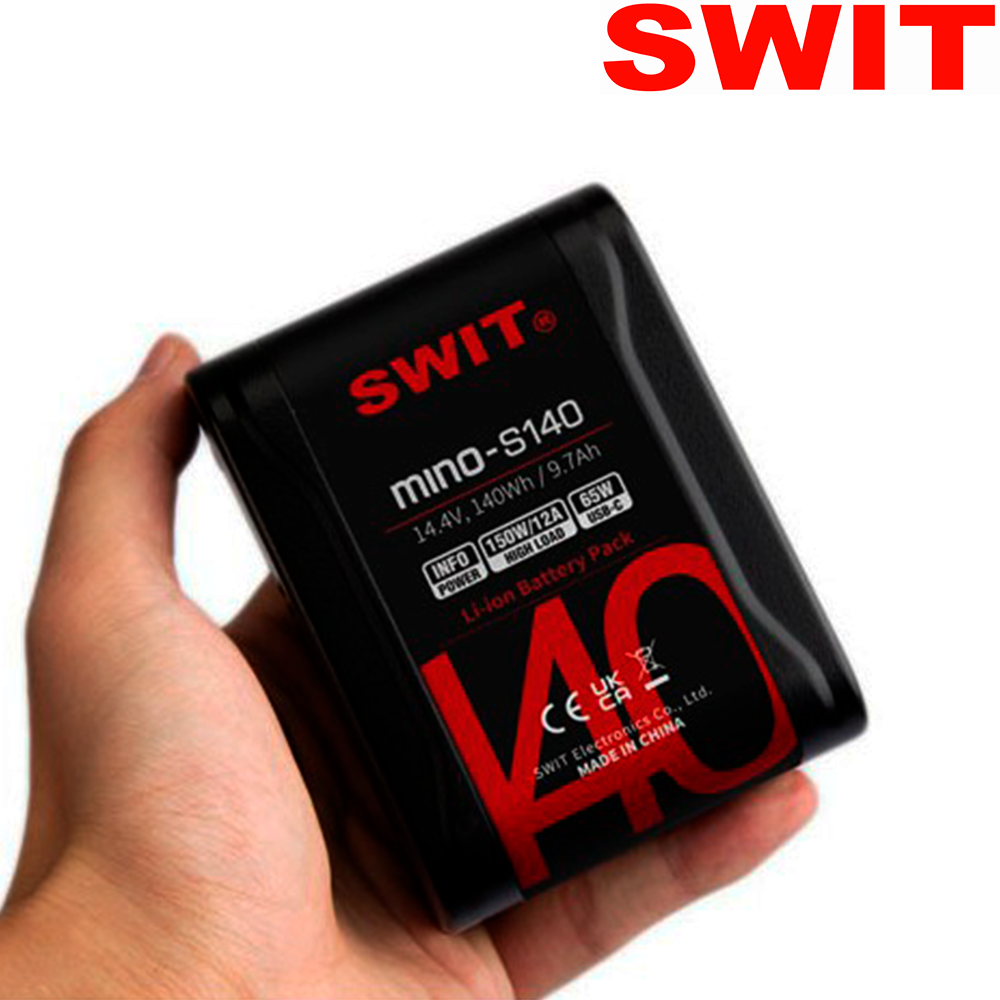

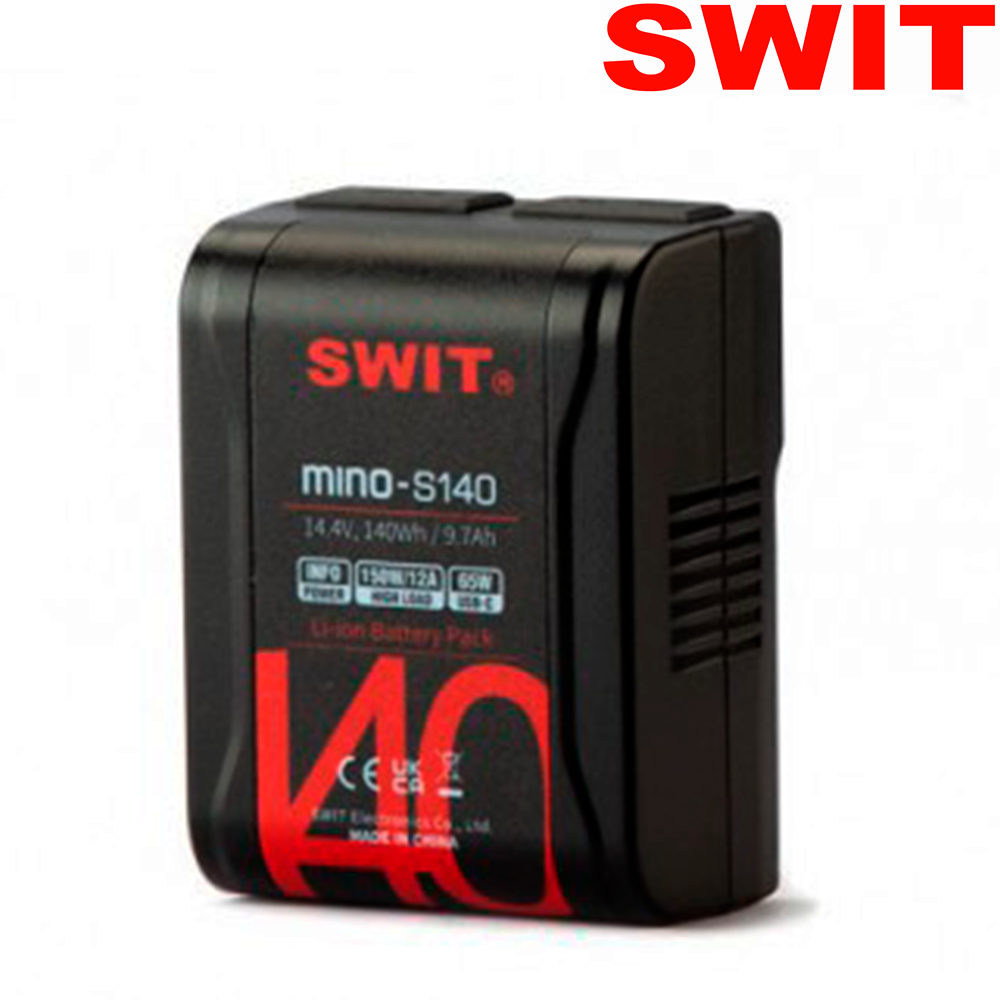

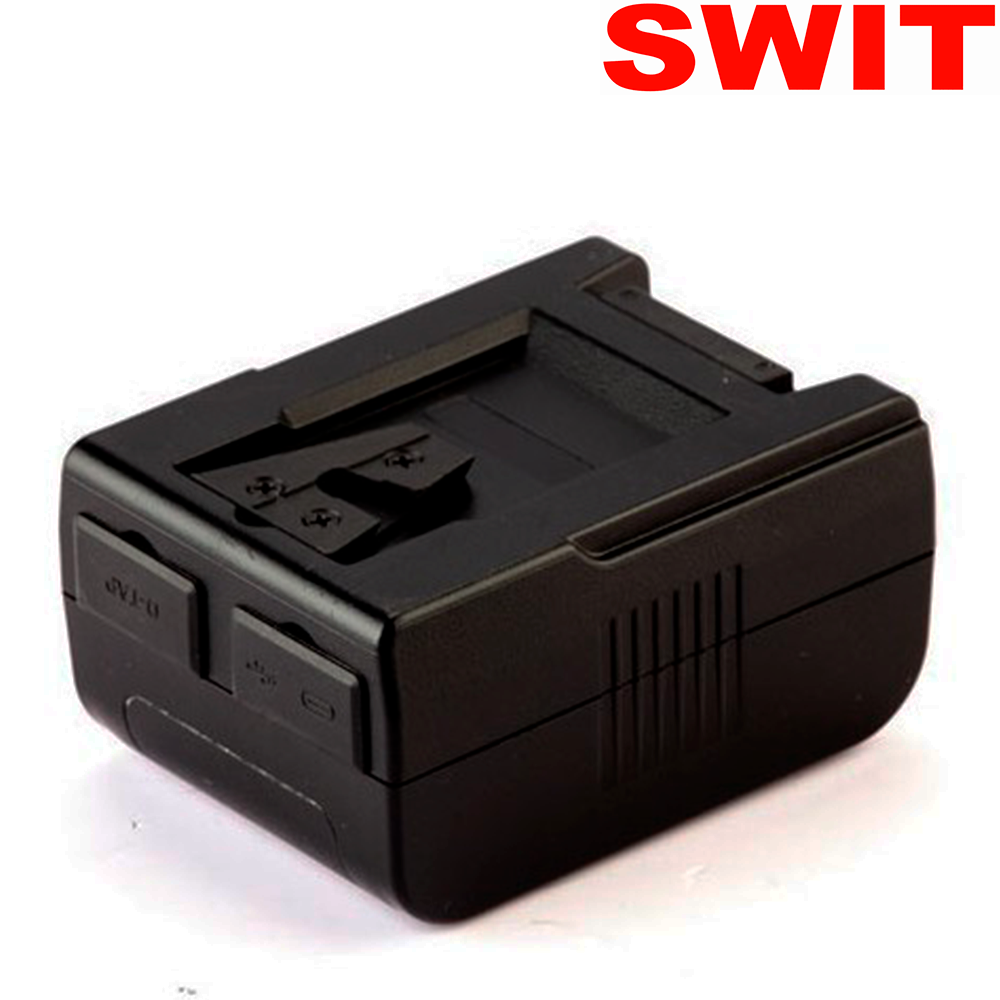

SWIT pocket battery with V-Mount mounting. The MINO-S140 has a nominal voltage of 14.4V, a capacity of 140WH / 9.7AH and a maximum charge current of 150W / 12A. It has a D-Tap connector and two USB ports.
Swit MINO-S140 consists of 8 high-performance cells, with 140Wh / 9.7Ah high capacity, and enables constant power delivery of at least 150W / 12A for high-powered film cameras and lights.

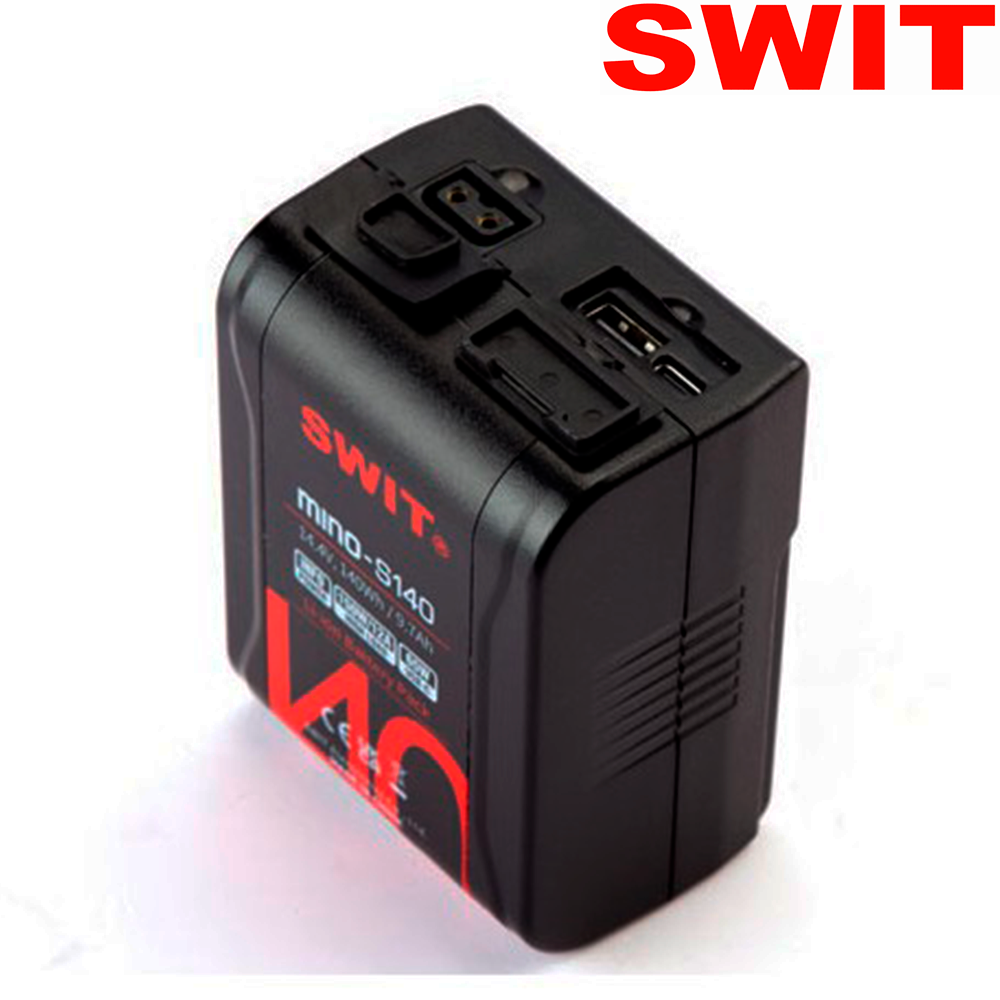

The small MINO-S140 equips all these DC connections:
D-tap x1 - 150W/12A high load (Supports load input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input

48W USB-C charging input
MINO-S140 battery can be charged with a USB-C charger, supporting PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and Max 20V 2.4A, which means it can fully charge the 140Wh battery in 3.5 hours.

65W USB-C charging output
You can charge your notebook via USB-C with the MINO-S140 battery in the shooting set. Supports multiple protocols 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP.

Cable-free internal technology
MINO-S140 has an innovative internal "wire-free" technique. All cells, D-tap, USB-A, USB-C, power indicator devices are soldered directly to the printed circuit board without connecting wires, thus reducing the internal resistance effectively and making the circuit stable, safe and reliable

SWIT MINO S140 Battery Features
Tiny V-mount battery, Pocket fit
Support RED V-Raptor install
140Wh/9.7Ah high capacity
150W/12A constant high load
1x D-tap output & charging input
1x USB-A 5V/2A output
1x USB-C 48W input & 65W output
4-step LED power indicator
Power info for both SONY & RED
Wire-Free internal technic
Multiple circuit protections.
