Complete Monitoring Solution
With full HD large screen, supports 3D LUTs to adjust and calibrate color, HDR, histogram, vectorscope, peaking focus, etc. functions, collocate with the attached sun hood, yo can also clearly seeing the screen even outdoor. ATEM156S-CO is the perfect monitor for on-set shooting and post production. The important is you can also make one-key all waves monitoring, so you know real time the true quality of incoming video feeds. ATEM156S is your complete monitoring solution of program production.

On Set Monitoring for Multi-camera
Great choice for director in crew

ATEM156S-CO is equipped with 4 3G-SDI inputs and outputs, which makes it more suitable for professional crew shooting . With multiple display modes, let the director can not only monitor each shot in real time, but also monitor more details on the full screen, so as to better communicate with the photographer in time.

Key Features:

15.6-inch 1920x1080 full HD large screen

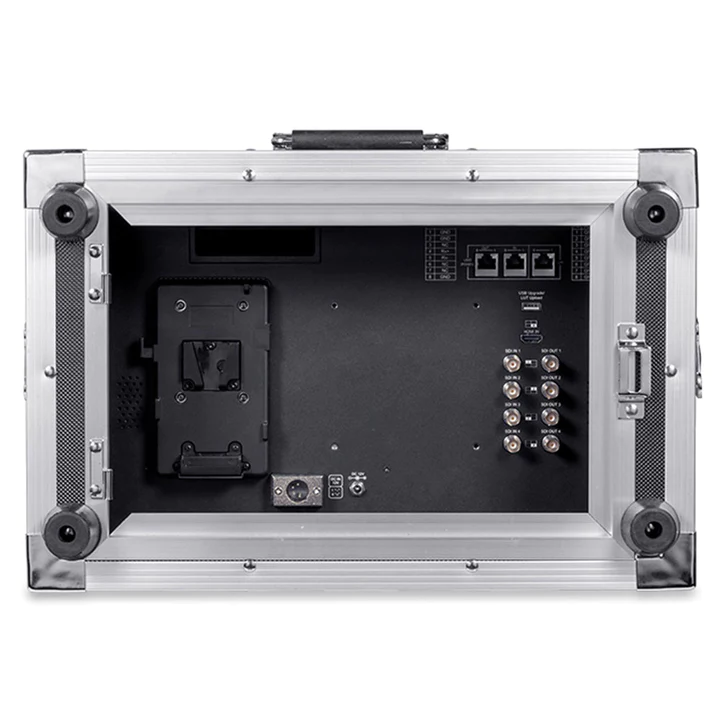

Portable carry-on aluminium case, ideal choice for location filming
Flexible and intuitive button operation, easy to use)
Multiple display modes (single, PIP, quad)
Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)
With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

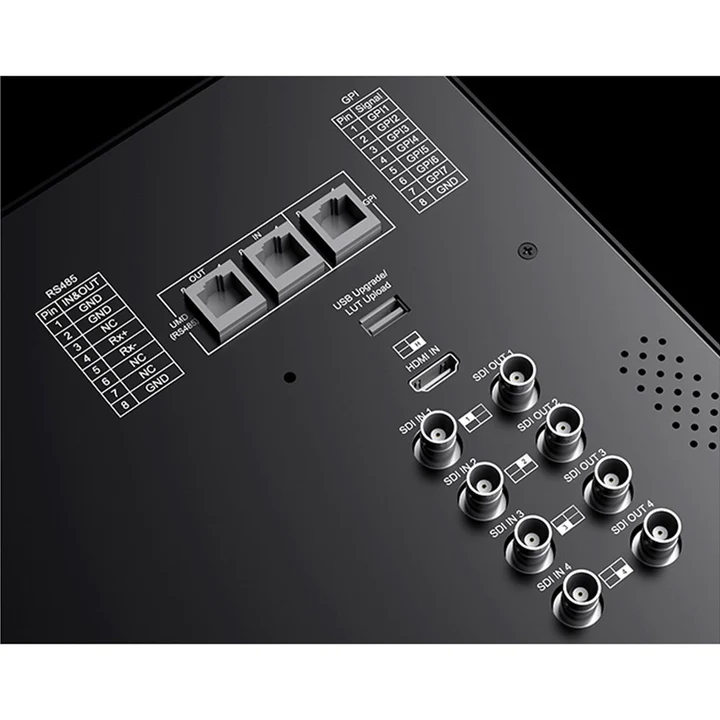

Multiple interfaces, meet different needs (4*3G-SDI inputs and outputs, 1*HDMI input, RS485, GPI)
Stereo Earphone output
Functions:

Focus Assist (Yellow, Red, Green, Blue, Whitefive colors optional highlight over parts of the image in focus)
Zebra (70IRE, 80IRE, 90IRE,user)
Monochrome (gray, red, green, blue)
False Color
Timecode
Nine Grid
Safety Marker ( 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
Center Marker
Marker Mat(16:9, 16:10, 4:3, 1.85:1, 2.35:1)
All Waves (can be adjusted left or right)
Parade(OFF, RGB Parade, Y, YUV Parade)
Vector
Histogram
RGB Histogram
Audio Meter
HDR
3D-LUT
Scan Mode (Under Scan, Over Scan)
Video Aspect (auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user)
Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
Zoom (4X, 9X, 16X)
Freeze
Pixel to Pixel
Colortemp (6500K, 9300K, user)
Display Mode(full screen, PIP, quad)
Display Spec.

Model: ATEM156S-CO
Screen Size: 15.6" IPS
Color Depth: 16.7M
Resolution: 1920×1080 pixels
Pixel pitch: 0.17925(W) x 0.17925(H) mm
Aspect Ratio: 16:9
Brightness: 200cd/m²
Contrast Ratio: 800:1
Backlight: LED
Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)
Input

4 X 3G-SDI: 3G-SDI (support 2K)
1 X HDMI: HDMI (support 1080P)
1 X RS485: RS485
1 X GPI: GPI
1 X USB: USB (upgrade and LUT import)
Output

4 X 3G-SDI: 3G-SDI (support 2K)
1 X RS485: RS485
Audio

Audio: Stereo Headphone
SDI Support Format

720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
2048x1080i (60/59.94/50)
2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format

480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
