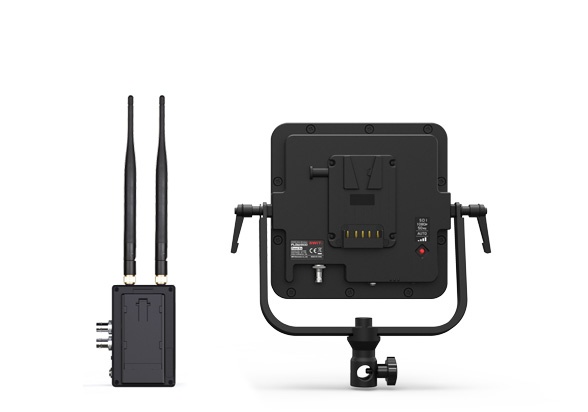

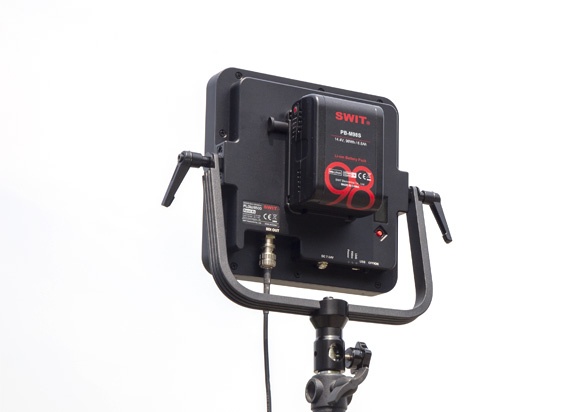

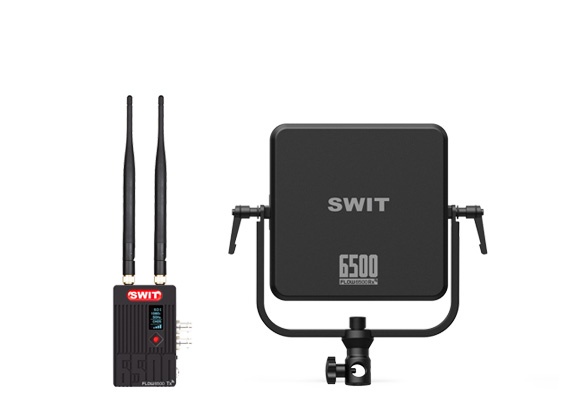

The FLOW6500 is a 5 GHz video radio link system with DFS and a transmission range of up to 2 km / 6,500 ft (line of sight). It consists of a transmitter with 3G-SDI and HDMI 1.3 input and 3G-SDI loop-through output, a panel antenna receiver with 3G-SDI output and other accessories. The system supports video formats up to 1080p60. The transmitter is powered either by the supplied power cable or a separately available NP-F battery and the receiver by the supplied AC adapter or a separately available V-mount battery.

KUWI 5.1 - 5.9 GHz technology with DFS
High transmission range of 2 km / 6,500 ft (line of sight) with high wall-cross performance
With 3G-SDI and HDMI 1.3
OLED display
One transmitter can be configured for an unlimited number of receivers
Several radio links can be used at one set
Wireless protocol with double encryption
Technical Specifications:
Frequency Range: 5.17 - 5.69 GHz and 5.75 - 5.83 GHz
RF Modules: OFDM 160QAM, 64QAM, QPSK, BPSK
RF Power: 125 mW
Transmission Range: 2 km / 6,500 ft (line of sight)
Supported Video Formats:
Full HD - 1920 x 1080p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
Full HD - 1920 x 1080PsF / 23.98 / 24
Full HD - 1920 x 1080i / 50 / 59.94 / 60
HD - 1280 x 720p / 50 / 59.94 / 60
Data Links:
Transmitter
1x 3G-SDI IN via BNC
1x 3G-SDI loop OUT via BNC
1x HDMI 1.3 IN via HDMI-A
1x USB via USB-C
1x Power supply DC IN via barrel connector
1x Power supply DC IN via NP-F battery
Receiver
1x 3G-SDI OUT via BNC
1x Power supply DC IN via barrel connector
1x Power supply DC IN via V-mount battery
General Product Information:
Dimensions Transmitter (W x H x D): 66 x 106.5 x 24.7 mm (2.6 x 4.2 x 1 in), with antennas
Dimensions Receiver (W x H x D): 190 x 190 x 47 mm (7.48 x 7.48 x 1.85 in)
Weight Transmitter: 236 g (0.52 lb)
Weight Receiver: 1.26 kg (2.78 lbs)
Operating Temperature: 0° to +40° C (+32° to +104° F)
Operating Voltage: 7 - 34 V DC (per transmitter and receiver)
Power Consumption: 9 W (per transmitter and receiver)
Scope of Delivery:
1x Transmitter
1x Receiver (panel antenna)
2x Antenna
1x Articulating arm with cold shoe and 1/4" screw
1x AC adapter with barrel connector, 3 m
1x DC power cord D-Tap to barrel connector
1x Hard shell case
