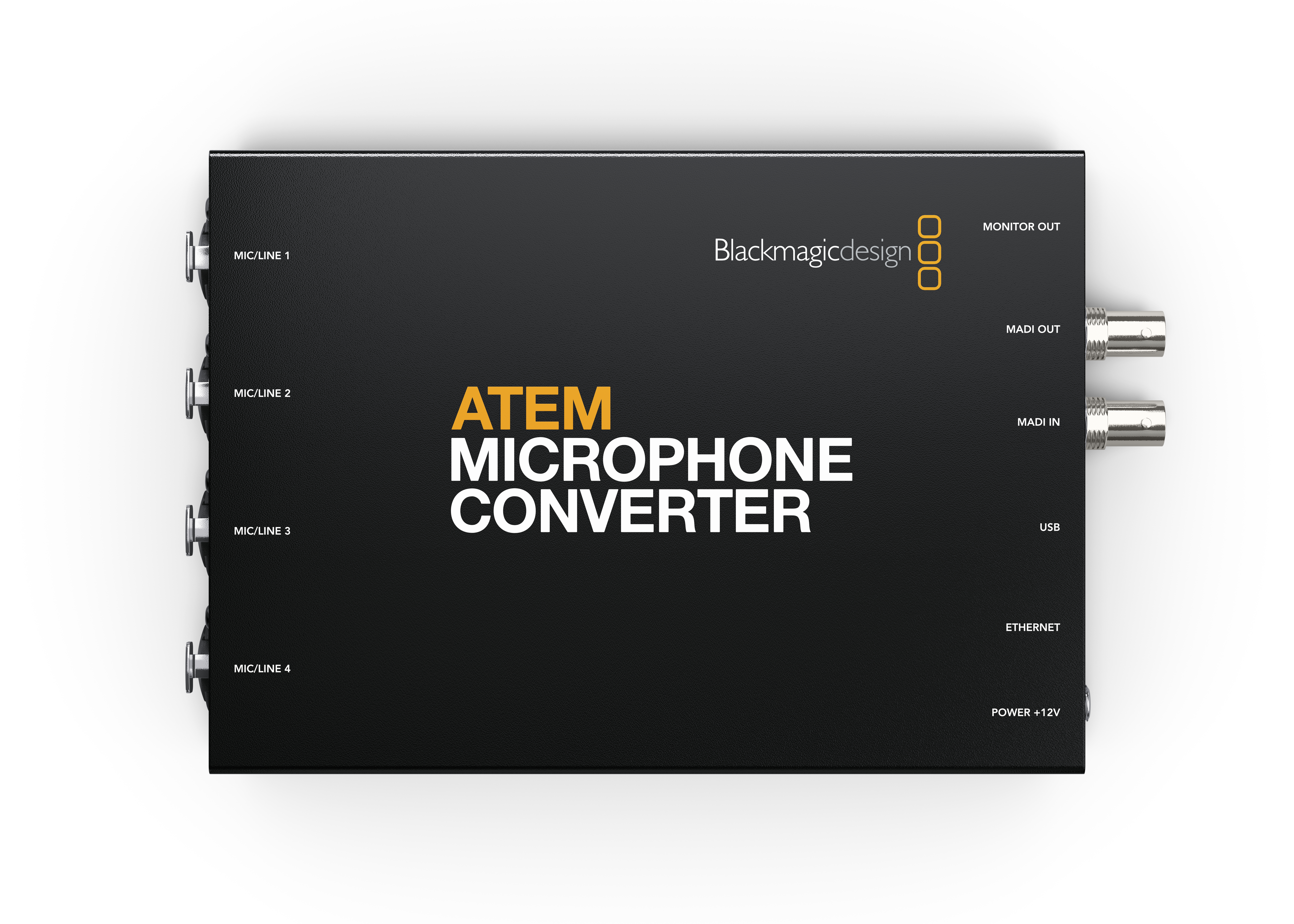

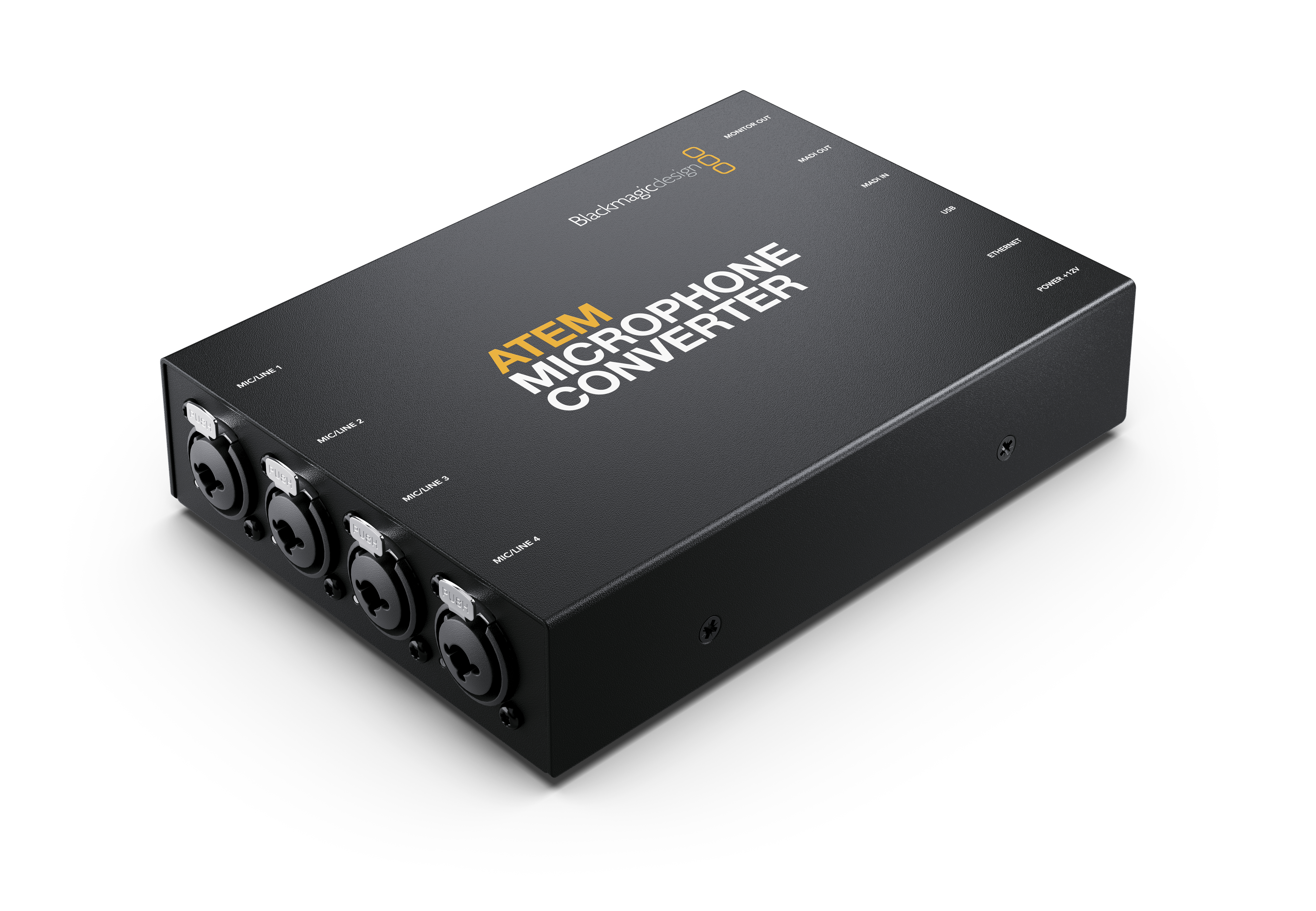

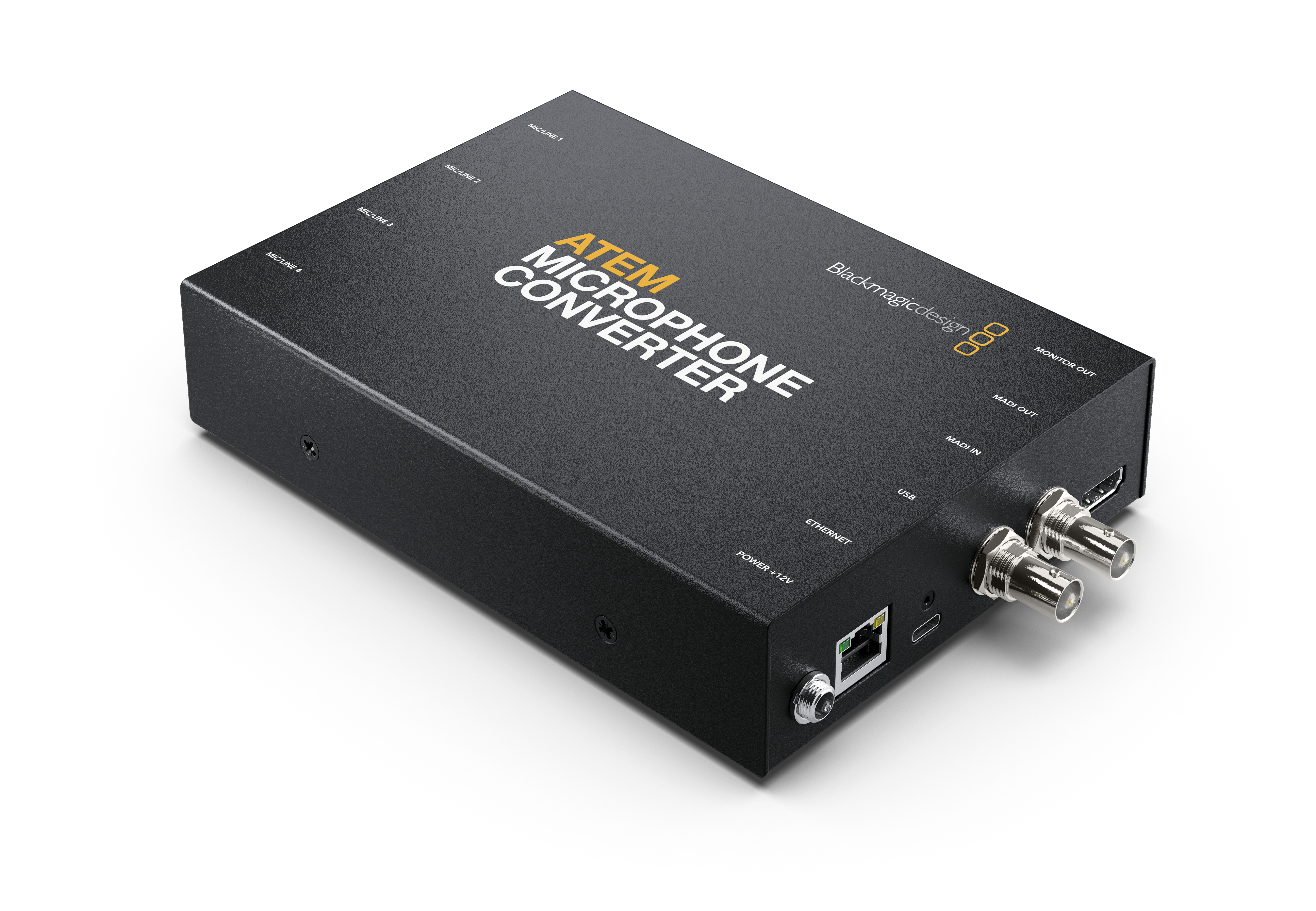

Now it's easy to expand the MADI input on the ATEM Television Studio switchers to add multiple microphones or external audio mixer sources. The ATEM Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no setup required and additional units can even be daisy chained for more sources. Each converter has 4 analog inputs that are mic/line selectable and have phantom power. The design features amazing audio quality with an extremely low noise floor, a wide dynamic range and very low distortion. The design even uses 8 separate ADCs on each separate input that work together to extend dynamic range! There is also an HDMI monitoring output with scrolling audio waveforms.

HDMI Output Standards
HD Video Standards
1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
HDMI Monitoring
Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.

Audio
ADCs Per Input
8

Digital Preamp
32-bit

Dynamic Range
131dB(A)

Noise Floor

- 129dBV

Total Harmonic Distortion at full scale
0.002%

Output Sample Depth
24-bit

Output Sampling Rate
48KHz

MADI Compliance
AES10-2020

Software
Software Control
Mac™ and Windows™ software upgrade via USB or Ethernet.

Internal Software Upgrade
Via downloadable utility application.
