IMAGING
Image Sensor: Sony 1 / 1.8'' CMOS - ULTRA HD
Lens: f= 6.25 - 125mm
Optical Zoom: 20x
Video Format:
2160p @ 60/59.94/50/30/29.97/25fps,
1080p @ 60/59.94/50/30/29.97/25fps,
1080i @ 59.94/50fps,
720p @ 60/59.94
Horizontal Angle of View: 60° (W) ~ 3.5°(T)
Vertical Angle of View: 35° (W) ~ 2.0°(T)
Diagonal Angle of View: 66.6°(W) ~ 4.0°(T)
Aperture: F1.58 (W) ~ 3.95 (T)
Focus: Auto, Manual
Exposure: Auto, Shutter Priority, Iris Priority, Manual
Shutter Speed: 1/1 - 1/10000s
Backlight Compensation: Yes
Digital Noise Reduction: 3D Noise Reduction
SNR: ≥45dB
Effective Pixels: 8.42 MP
AI Tracking: Presenter Tracking, Zone
MECHANICAL

Pan/Tilt Rotation: ±170°, -30° ~ +90°
Pan Control Speed: 1.7-80°/sec
Tilt Control Speed: 1.7-60°/sec
Preset Number: 255 Presets
Integrated Tally Light: HALO tally and rear number tally system
Display: e-Ink 2.13'' with customization logo

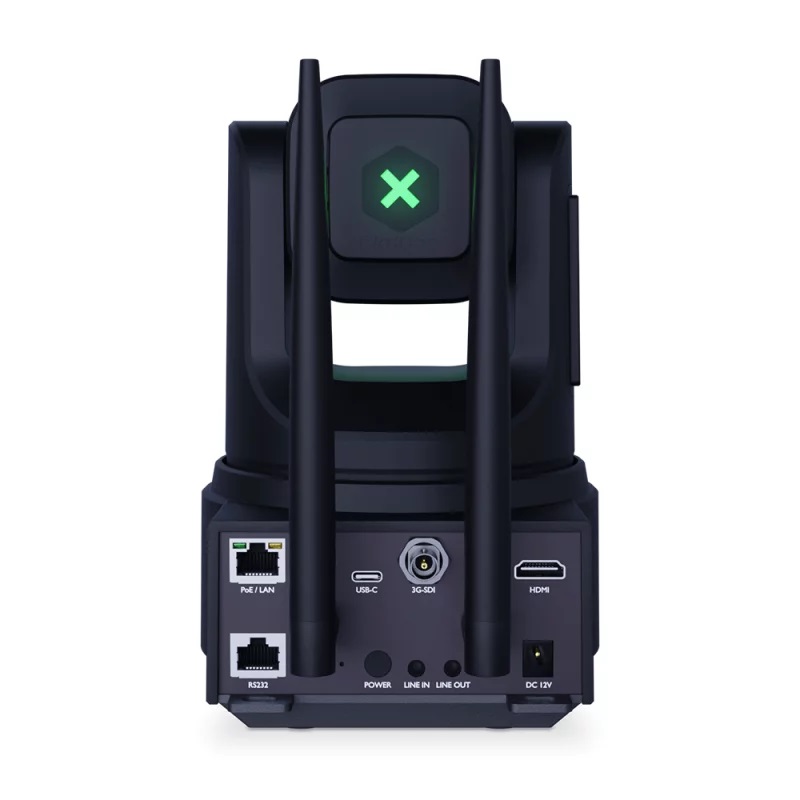

I/0 INTERFACE

Video Output Interfaces: 3G-SDI, HDMI, USB-C UVC, Network
Video Compression Formats: H.264, H.265
Network Interfaces: 1Gbps adaptive Ethernet port; PoE IEEE 802.3at, WiFi 6 2x2 MIMO (Optional Base station)
Encoder Network Protocols: NDI®|HX2, NDI®|HX3, RTSP, RTMP, SRT
Control Interfaces: 1Gbps Ethernet, USB-C, RS-232
Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®, ONVIF
Analogue Audio: 3.5mm TRS Line input/Mic Input
GENERAL

Environmental Operation: Internal
Input Voltage: DC 12V, POE IEEE 802.3at
Input Current: 5.0A (Max)
Battery Capacity: 9450mAh
Battery operating time (per charge): up to 6 hours run time (usage dependent)
Working Temperature: 0°C ~ +40°C
Working Humidity: 20% ~ 80%
Dimension (W*H*D) mm: 140.2*188.9*203.2mm/ 295*245*254mm (before / after packing)
Weight: 2.19kg
