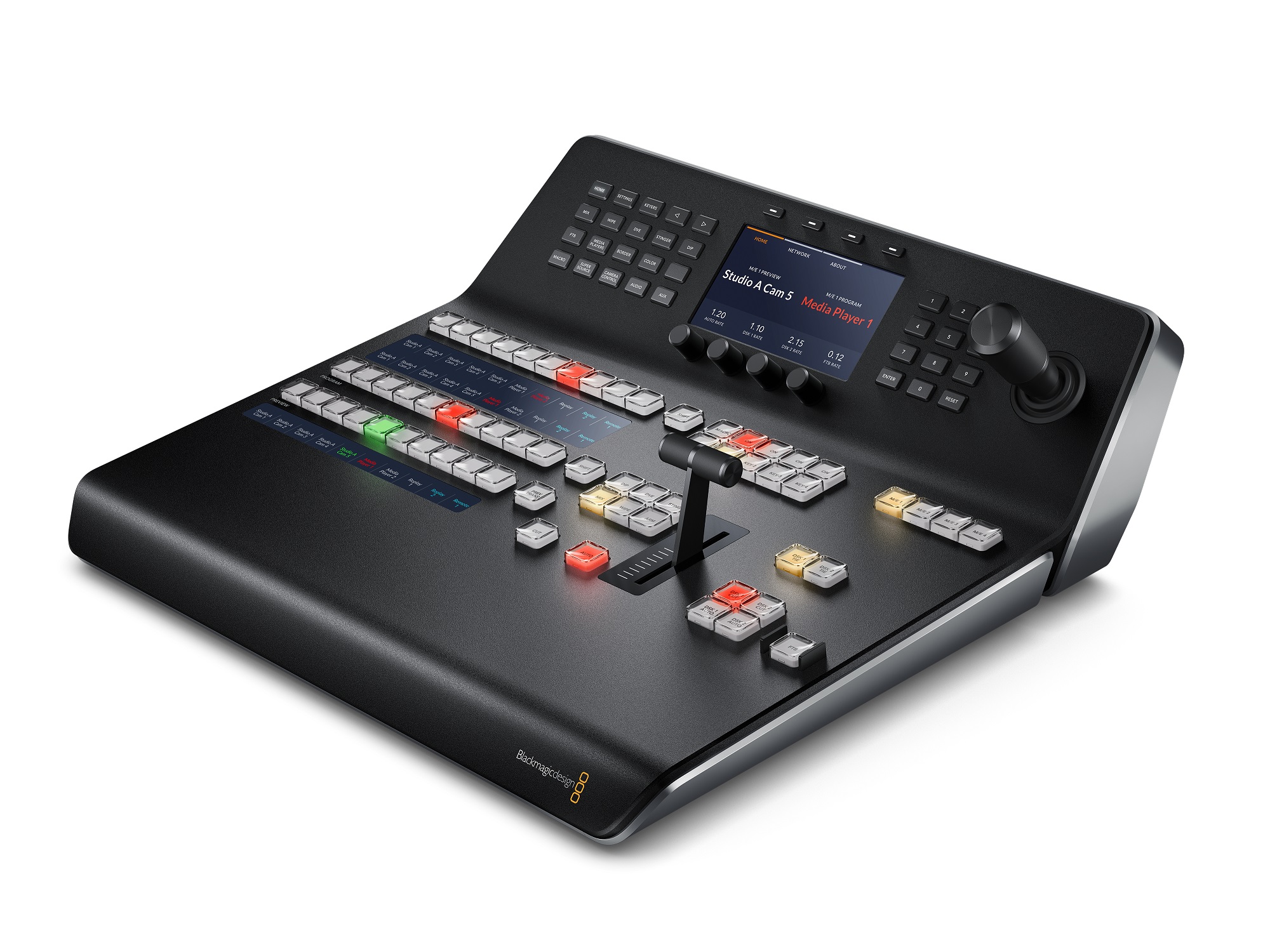

The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t-bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.

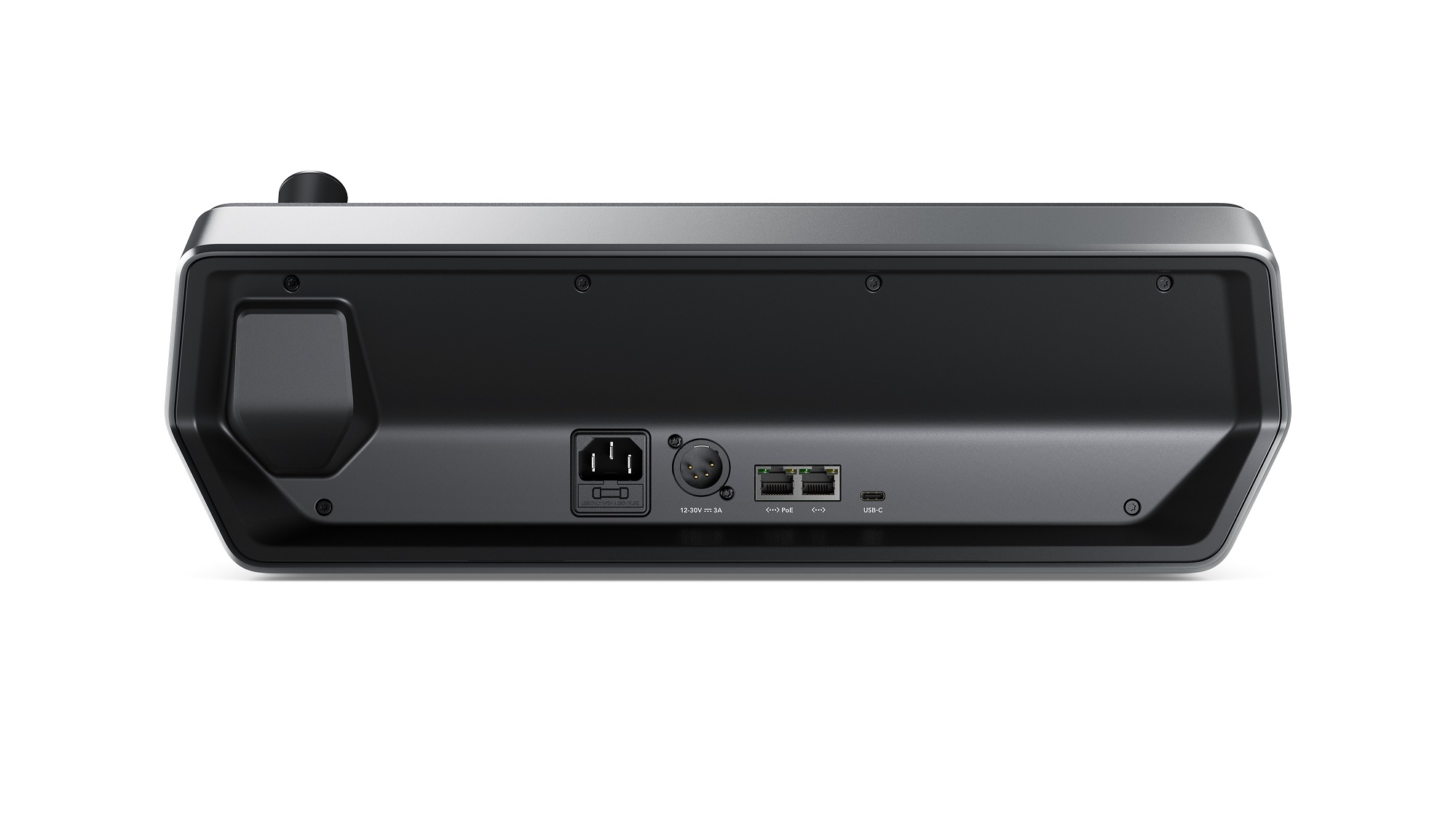

Connections
Ethernet
2 x 10/100/1000 BaseT with loop
output for additional control panels or computers

software-updates
1 x USB-C for firmware updates

Product Specifics
Direct Cross Points
10

Shifted Cross Points
20

Crosspoint Button Type
Tri-Color LED

Crosspoint Label
3 rows 24 character LCD

On-Air indicator
4

Power Status Indicators
None

DSK Transition Selectors
Auto, Cut, Tie/Preview.

Preview Transition
1

Transition Rate Displays
Via main menu

LCD Menu Displays
3

Menu Control
20 buttons

Dedicated Macro Buttons
10

Multi Control Buttons
None

Destination Bus
1

Source Select Bus
1

Fader Bar
1

3 Axis Joystick
1

Numeric Keypad
1

Software
Software Applications
ATEM Software Control Panel.
