This model includes the features of ATEM SDI plus it adds built in streaming and recording to 5 video streams in real time! That's a clean feed of all inputs for multi‑cam editing! A DaVinci Resolve project is saved so you can open your live production to edit, remix audio and add color correction!

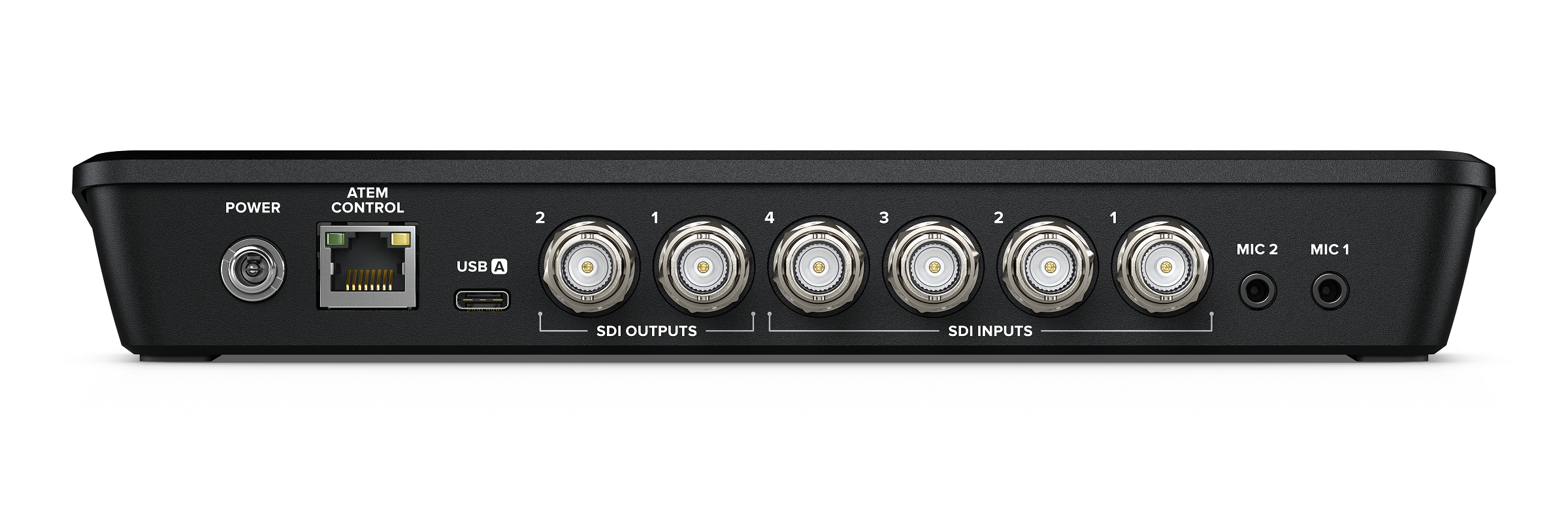

Connections

SDI Video Inputs
4 x 3G-SDI, 10-bit HD switchable.

2 channel embedded audio.

Video Input Re-Sync
On all 4 SDI inputs.

Frame Rate and Format Converters
On all 4 SDI inputs.

SDI Program Outputs
2

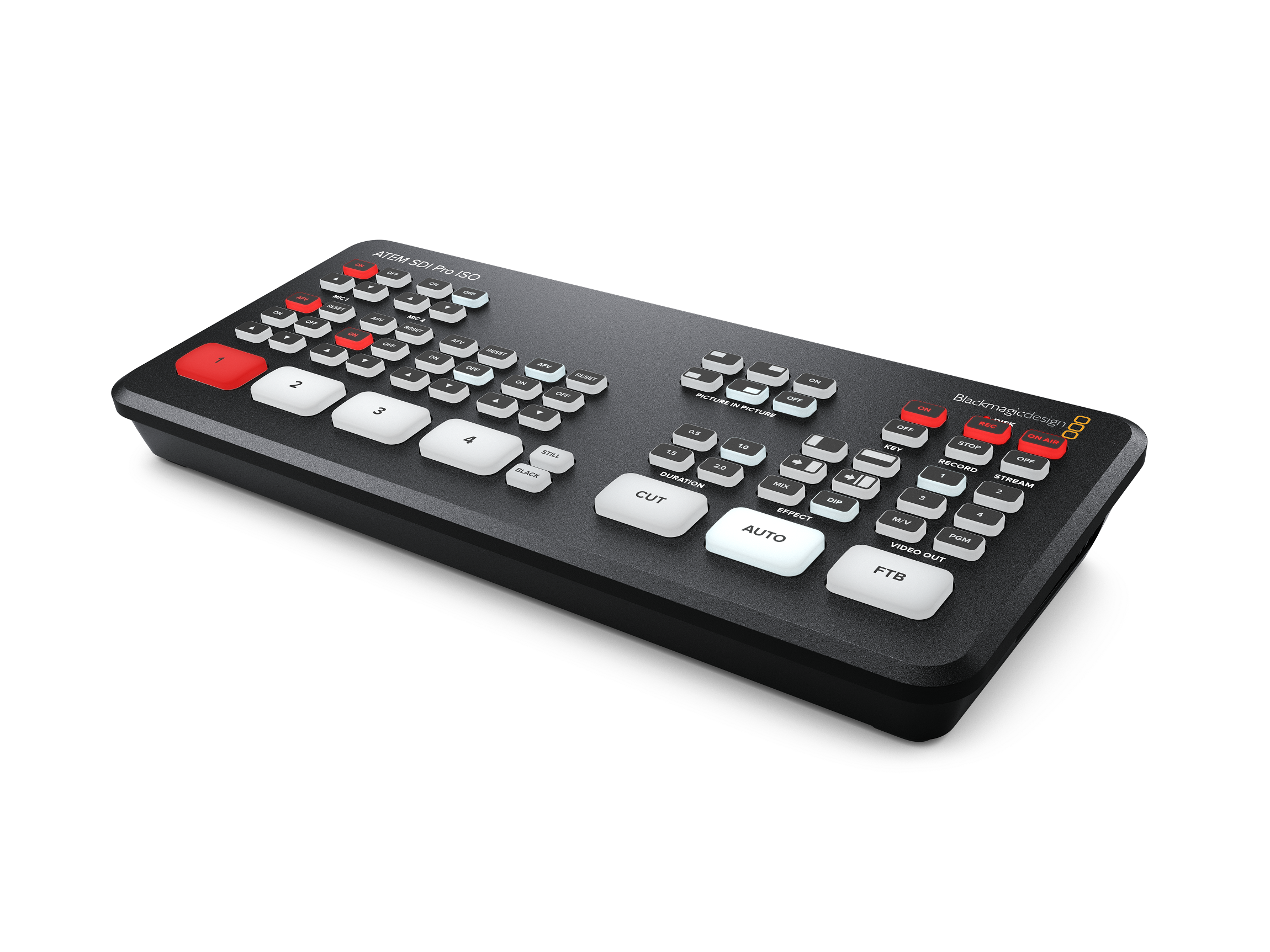

ATEM SDI Pro ISO
Standards
HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HD Video Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
None

Video Sampling
4:2:2 YUV

Color Precision
10-bit

Color Space
Rec 709

Colorspace Conversion
Hardware based real time.

Product Specifics
Upstream Keyers
1

Downstream Keyers
1

Advanced Chroma Keyers
1

Linear/Luma Keyers
2

Transition Keyer
DVE only.

Total Number of Layers
5

Pattern Generators
1

Color Generators
2

DVE With Borders and Drop Shadow
1

Interface
Minimum monitor resolution of 1366 x 768.

Audio
Audio Mixer
6 input x 2 channel mixer.

Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.

Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input
Unbalanced stereo

Analog Input Delay
Up to 8 frames

Input Impedance
1.8k

Max Input Level
+6dBV

Mic Plug In Power
Available on both 3.5mm mini jack connections.

Streaming
Direct Streaming
ATEM SDI Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording
Direct Recording Video and Audio
USB-C 3.1 Gen 1 expansion port can record directly to external media.

Video Recording
4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.

1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording
6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs.

Switching
Program switching recorded as a DaVinci Resolve project .drp file.

Media Format
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring
Multi View Monitoring
1 x 10 Views including left right configurable Program/Preview, 4 SDI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard
HD

Media Player
Media Players
1

Channels
Fill and key for each Media Player.

Media Pool Still Image Capacity
20 with fill and key.

Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.

Control
Control Panel

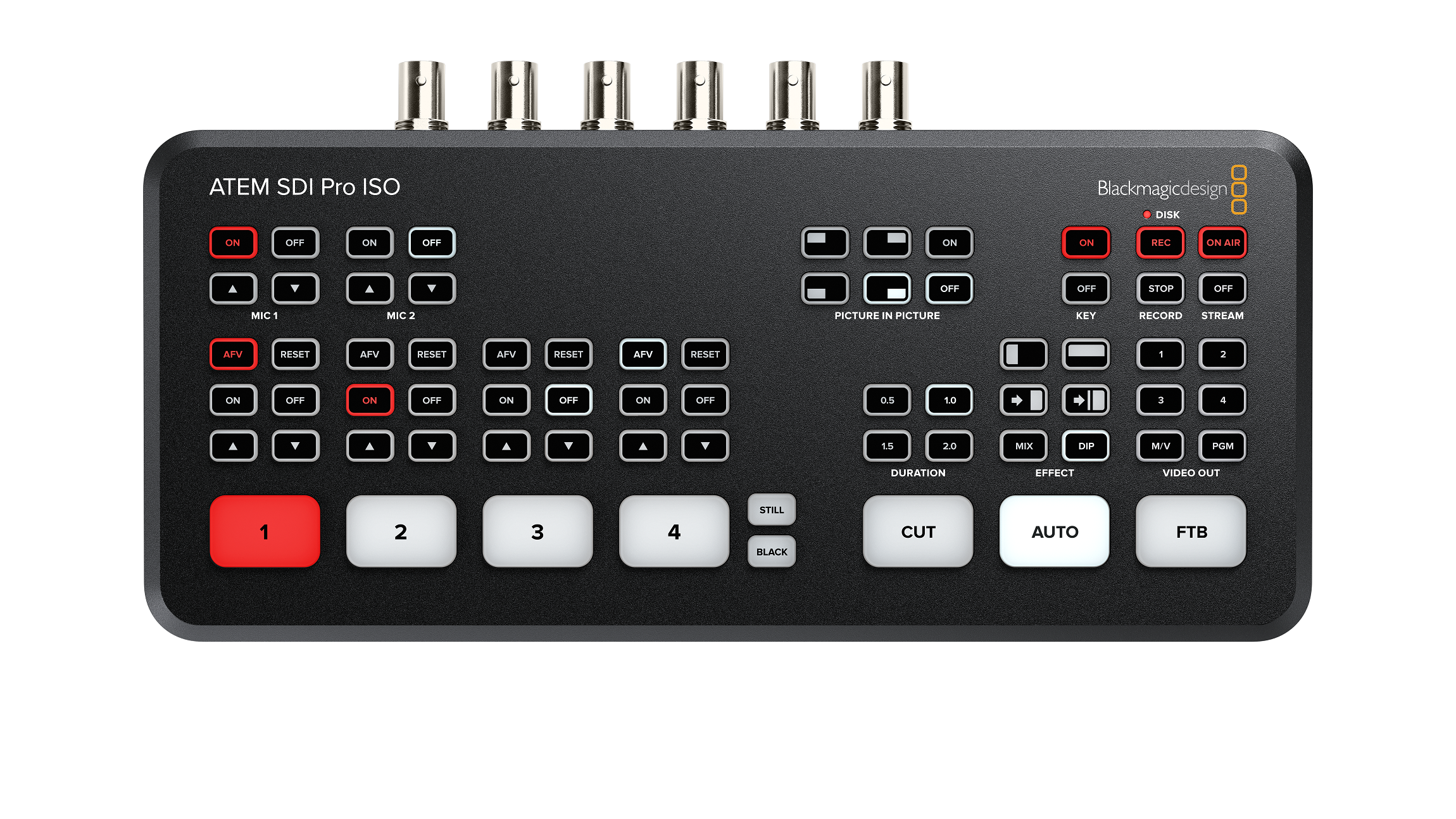

Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Control Panel Compatibility
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM SDI Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
