Ominaisuuksia:
ISO -mallissa kahdeksan 3G-SDI -tulon tallennus ja tallentaa DaVinci Resolve -projektitiedoston.
ISO -malli tukee remote internet connected cameras (Blackmagic Studio Camera 6K Pro, Blackmagic Studio Camera 4K Pro G2)
Sisäinen m.2 paikka sisäiselle tallennukselle, jaettavissa mm. Blackmagic Cloud Storeen ja Google Driveen
T-BAR
8x 3G-SDI tuloa signaalinuuntililla. 2 AUX -liitäntää
8x 3G-SDI monitor lähtöä jokaiselle tulokanavalle esim kameroita varten tai hidastuslaitteistoa varten
4 väriavainninta, ATEM Advanced Chroma Keyers
2 down keyralavirtaavainta
SuperSource
2 mediasoitinta
Fairlight-äänimikseri säätönupeilla ja mukautuvalla audio taso ja muokkausnäytöllä
XLR-, RCA- ja MADI-tulot. Jokaisessa tulokanavassa on korkealaatuisin 6-kaistainen parametrinen taajuuskorjain, kompressori, limitteri, expander, gate sekä taso- ja panosäätimet
DVE kuten dip to color, DVE squeeze ja DVE push., PIP
9 x 3G-SDI lähtöä ja 2 x 3G-SDI aux-lähtöä
USB-lähtö toimii web-kamerana
Tuki Blackmagic Studio Camera tai Blackmagic URSA Broadcast G2
Expands audio inputs with ATEM Microphone Converter

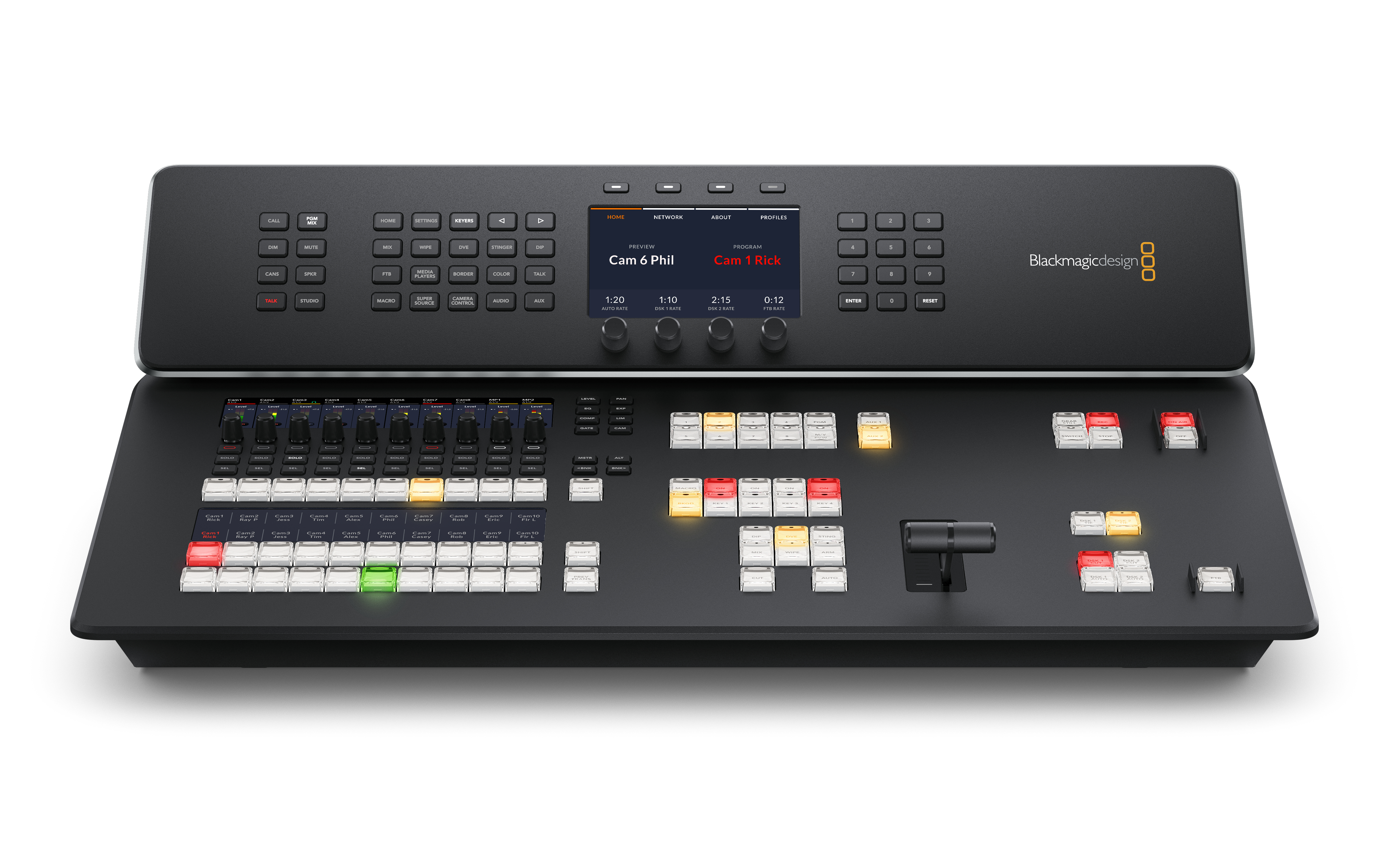

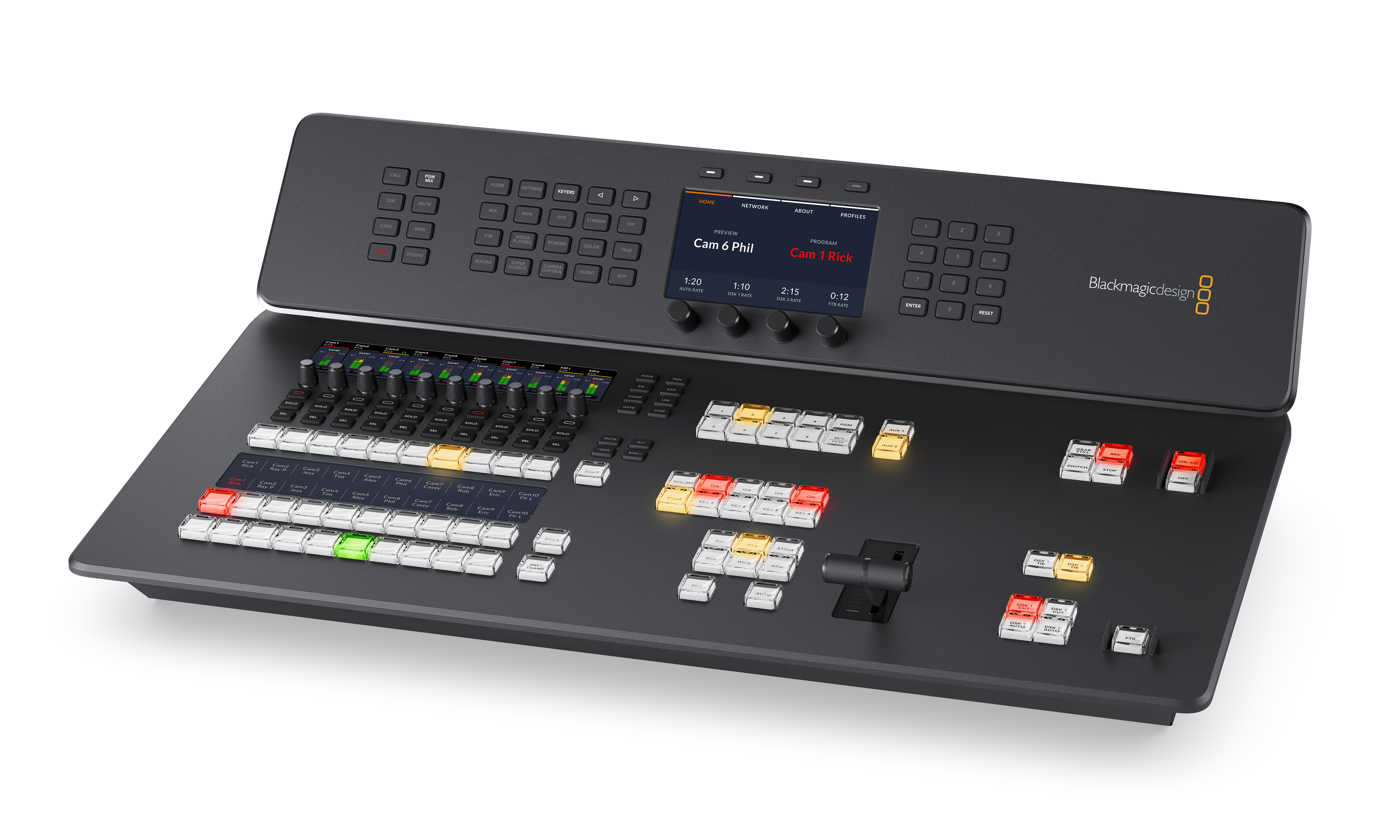

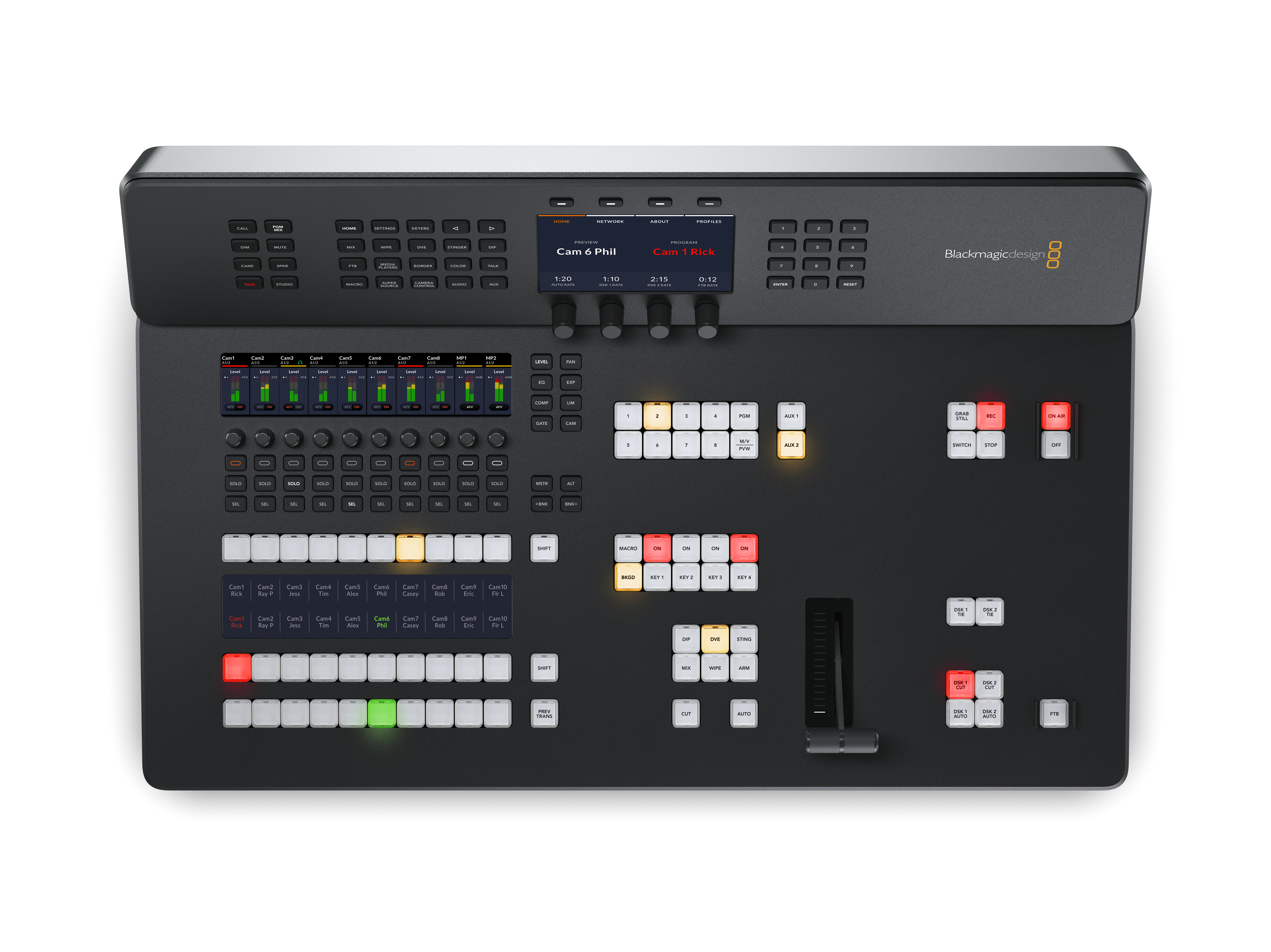

Compact live production switcher with built in broadcast control panel, 8 x 3G-SDI inputs, streaming, recording, multiview, DVE, keyers, USB webcam, media players, talkback and optional cloud storage.

Product Specifics
Upstream Keyers
4

Downstream Keyers
2

Advanced Chroma Keyers
4

SuperSource
1

Linear/Luma Keyers
7

Transition Keyer (Stinger/DVE)
1 Stinger, 1 DVE.

Total Number of Layers
8

Pattern Generators
7

Color Generators
2

Control Panel
Integrated panel with full control of switching and settings.

Routable Windows
16

Windows Source Labels
Yes

Tally
Red for program and green for preview indication.

Talkback Support
Yes

Mix Minus Support
Yes

Connections
SDI Video Inputs
8

SDI Video Outputs
12

SDI Rates
1.5G, 3G

HDMI Video Outputs
1

Total Audio Inputs
2 x XLR balanced analog audio,

1 x BNC 32 Ch MADI digital audio,

2 x RCA stereo analog audio,

1 x 5 pin XLR Talkback.

Total Audio Outputs
4 x 1/4 inch Jack analog audio,

1 x BNC 64 Ch MADI digital audio, up to 50 active,

1 x 5 pin XLR Talkback.

SDI Audio Inputs
4 Ch embedded audio on all SDI inputs.

SDI Audio Outputs
2 Ch embedded audio on all SDI outputs.

Timecode Connections
1 x BNC In, 1 x BNC Out.

Reference Input
1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

Video Input Re-Sync
On all 8 inputs.

Frame Rate and Format Converters
On all 8 inputs.

SDI Aux Outputs
2

SDI Program Outputs
1

Webcam Output
2 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views
1 x 3G-SDI

1 x HDMI

Remote
RJ12 supports RS-422

Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator
Yes

Talkback
RJ45 for 3rd party talkback systems.

Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet
4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.

Computer Interface
2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.

Power Requirements
Power Supply
1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket.

1 x 4 pin XLR 12V DC In for external power supply or battery use.

Power Usage
100 W max.
