Blackmagic ATEM Television Studio 4K8

Blackmagic ATEM Television Studio 4K8

Tuotekoodi: SWATEMTVSTC/K4K8

Kysy saatavuus

Toimituskulut alkaen 9,00 €
Tai nouto myymälästä 0 €

4505,65 €

5654,59 € (ALV 25.50 %)

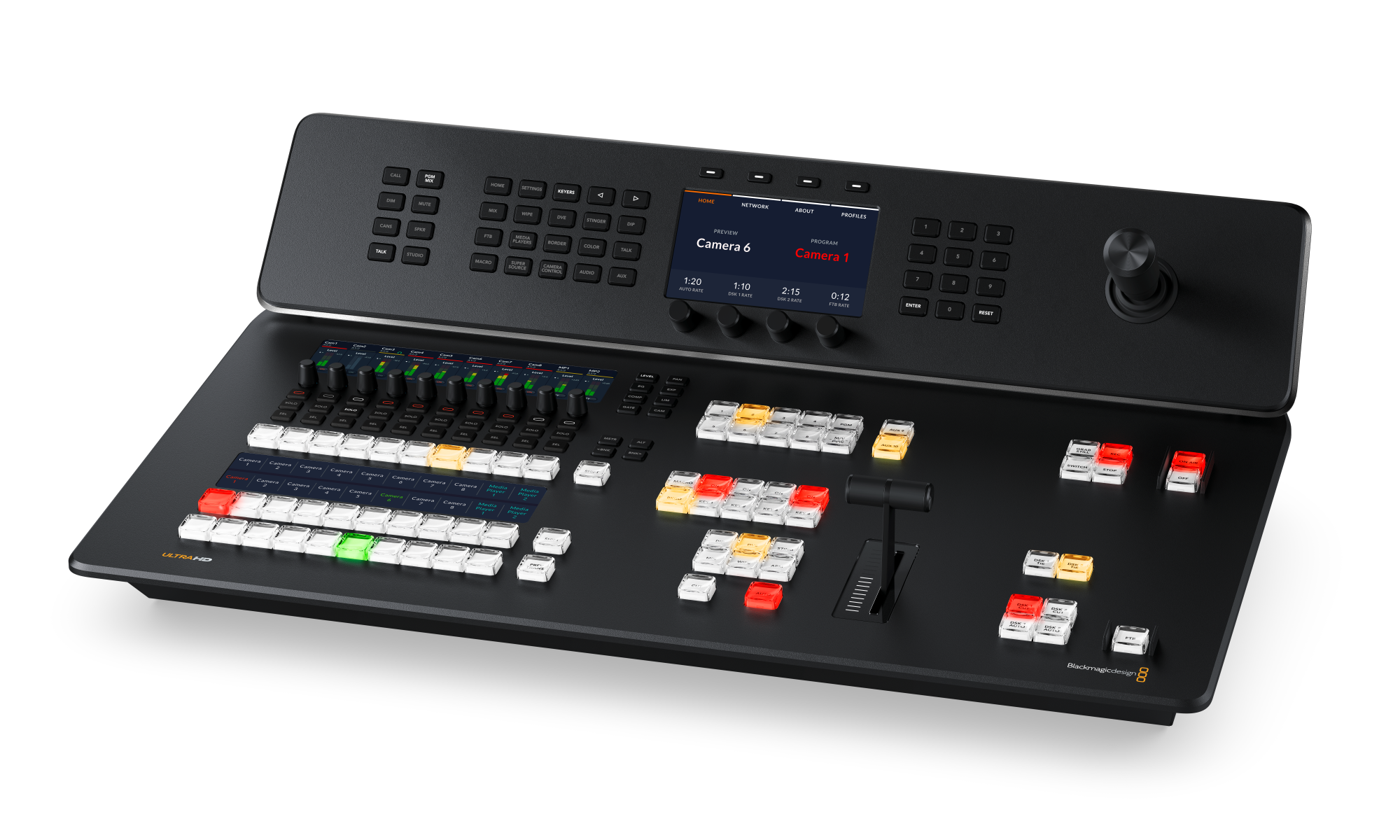

ATEM Television Studio 4K8 is a powerful Ultra HD live production switcher with a built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, 4 port 10G Ethernet switch, built in streaming, master recorder, multiview, USB webcam support, 2 DVEs, SuperSource, 4 ATEM Advanced Chroma Keyers, 2 media players, talkback and more
Connections
SDI Video Inputs
8

SDI Video Outputs
12

SDI Rates
1.5G, 3G, 6G, 12G

HDMI Video Outputs
1

Total Audio Inputs
2 x XLR balanced analog audio,

1 x BNC 32 Ch MADI digital audio,

2 x RCA stereo analog audio,

1 x 5 pin XLR Talkback.

Total Audio Outputs
4 x 1/4 inch Jack analog audio,

1 x BNC 64 Ch MADI digital audio, up to 50 active,

1 x 5 pin XLR Talkback.

SDI Audio Inputs
4 Ch embedded audio on all SDI inputs.

SDI Audio Outputs
16 assignable channels.

Timecode Connections
1 x BNC In, 1 x BNC Out.

Reference Input
1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

Video Input Re-Sync
On all 8 inputs.

Frame Rate and Format Converters
On all 8 inputs.

SDI Aux Outputs
10

SDI Program Outputs
1

Webcam Output
2 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views
1 x 12G-SDI

1 x HDMI 2.0

Remote
RJ12 supports RS-422

Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator
Yes

Talkback
RJ45 for 3rd party talkback systems.

Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet
4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T.

Computer Interface
2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.

Standards
SD Video Standards
None

HD Video Input Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Input Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97
2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
Video Sampling
4:2:2

Color Precision
10-bit.

Color Space
REC 709, REC 2020

SDI Auto Switching
Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
