16 channels audio embedded in SD and HD.

10G Ethernet Port
1 x 10G BASE-T

10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels.

Sync Output
Tri-Sync or Black Burst.

Computer Interface
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

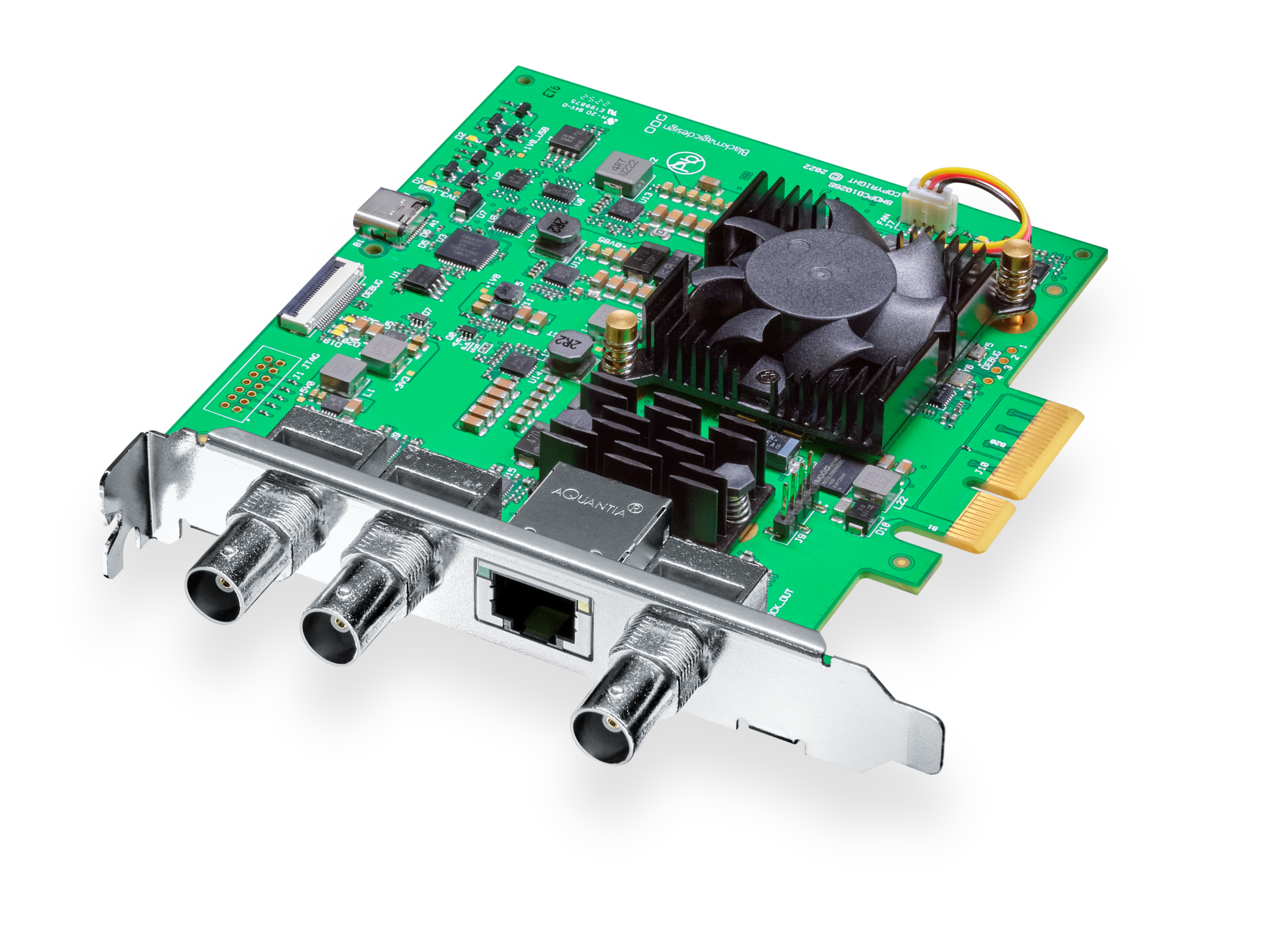

DeckLink IP/SDI HD
Supported Codecs
AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4

Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60
1080PsF23.98*, 1080PsF24*, 1080PsF25*, 1080PsF29.97*, 1080PsF30*

* PsF SDI ONLY

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, level A and B, ITU‑R BT.656 and ITU‑R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.

Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.

Color Space
REC 601, REC 709, REC 2020

HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics.

IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2

SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)
Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Precision Time Protocol
IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration
v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management
v1.1.2

NMOS BCP-002-01
Natural Grouping

NMOS BCP-004-01
Receiver capabilities
