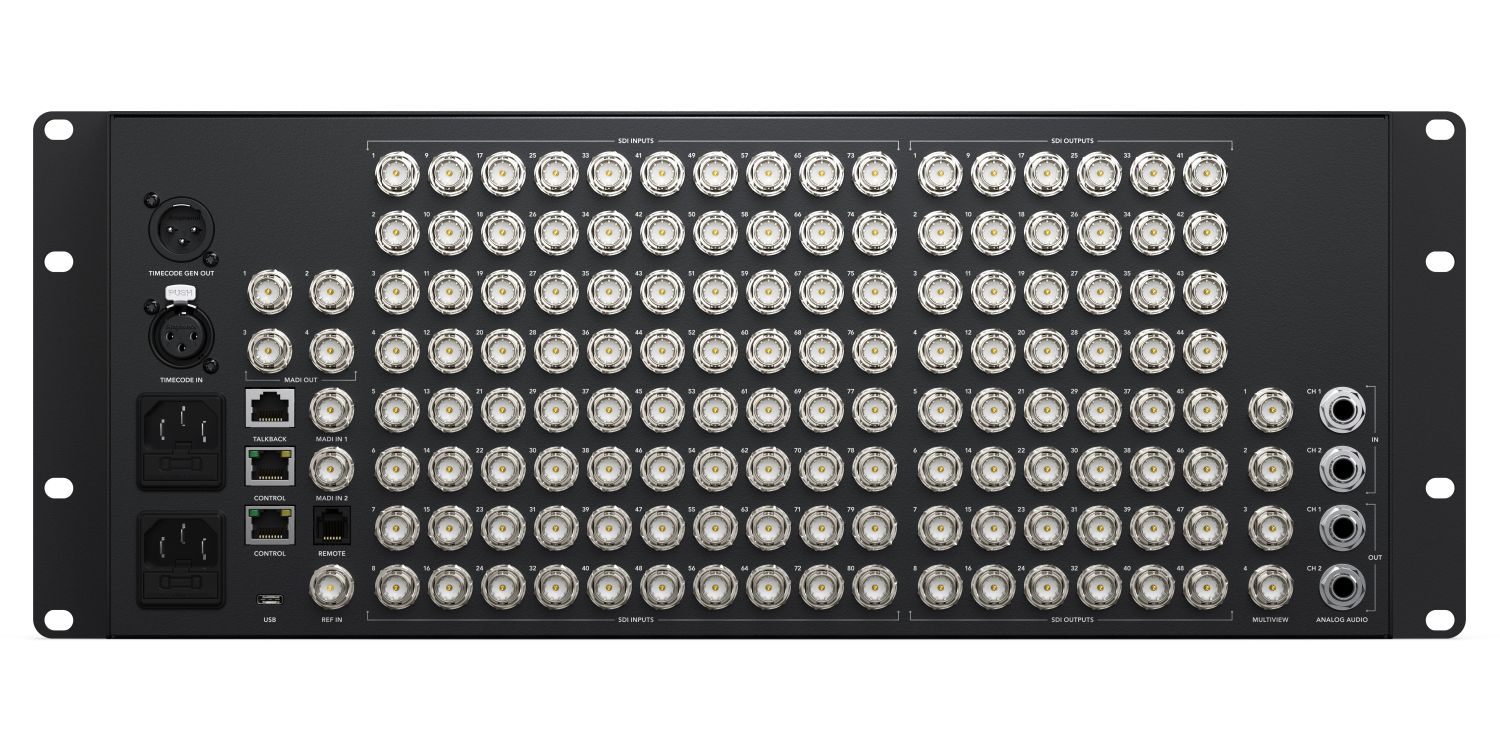

Connections:

Total Video Inputs 80
Total Video Outputs 52
Total Aux Outputs 48

SDI Rates 1.5G, 3G, 6G, 12G.

Total Audio Inputs:
2 x balanced 1/4 inch jack,
2 x 64 channel BNC MADI in,
1 x 5-pin XLR Talkback.

Total Audio Outputs:
2 x balanced 1/4 inch jack,
4 x 64 channel BNC MADI out,
1 x 5-pin XLR Talkback.

Timecode Connections:
1 x 3-pin XLR Timecode In,
1 x 3-pin XLR Timecode Out.

Reference Input: Tri-Sync or Black Burst.
Video Input Re-Sync: On all 80 inputs.
Frame Rate and Format Converters:On all 80 inputs.

SDI Video Inputs: 80 x 10-bit 720p, 1080i, 1080p, 2160p.
SDI Audio Inputs: 8 Ch embedded audio on all SDI inputs.
Extra Audio Inputs: 1 x 5 pin XLR Talkback.
SDI Video Outputs: 52 x 10-bit 720p, 1080i, 1080p, 2160p.
SDI Audio Outputs: 16 Ch embedded into SDI output on all outputs.
Extra Audio Outputs: 1 x 5 pin XLR Talkback.
SDI Program Outputs: Any of the 48 SDI outputs.
Down Converted SDI Program Outputs: 8
SDI Preview Outputs: Any of the 48 SDI outputs
SDI Multi View Outputs: 4 x dedicated outputs, Up to an extra 48 routable outputs.

HDMI Multi View Outputs: None
Webcam Output: 1 x USB-C supporting 720p or 1080p at program frame rate.

Remote: RJ12 supports RS-422.

Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

Internal Timecode Generator:: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
On any of the 48 SDI Outputs.

Computer Interface: 1 x USB-C port.
