SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Inputs: 1
HDMI 2.0 Video Outputs: 1
HDMI Monitor Outputs: 1

Built in Speaker: Mono
Audio Output: 1 x 6.35 mm headphone jack

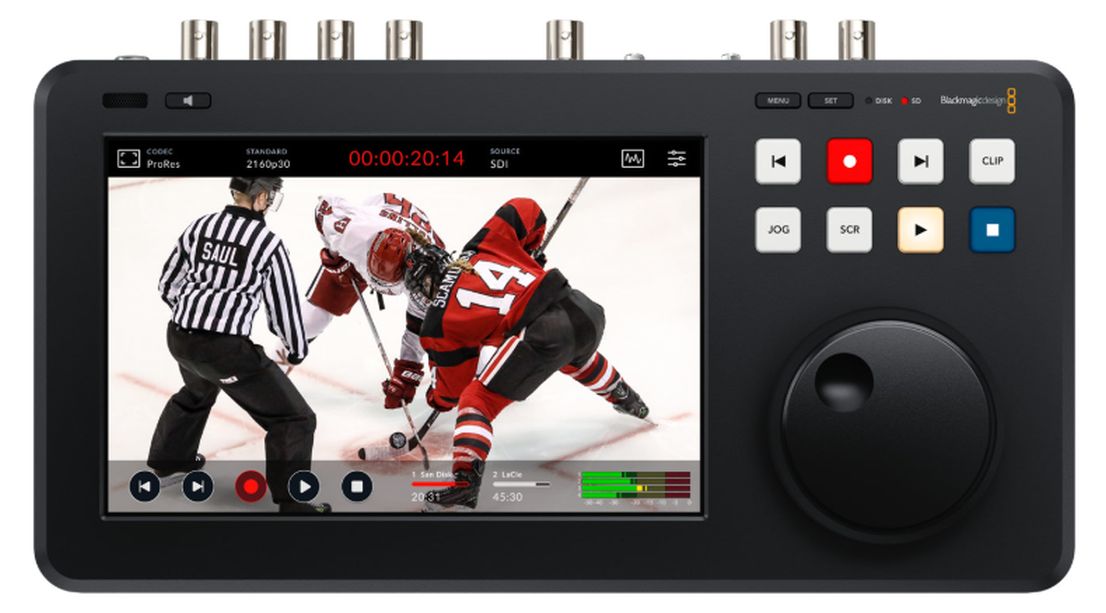

Screen: 7 inch LCD.

Reference Input: 1 x BNC In, Tri-Sync or Black Burst.
Reference Output: 1 x BNC Out.

SDI Audio Inputs: 64 channels embedded audio.
SDI Audio Outputs: 64 channels embedded audio.
HDMI Audio Inputs: 8 channels embedded audio.
HDMI Audio Outputs: 8 channels embedded audio.

Remote Control: 1 x RS-422 In.
Recorder Configuration: Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
External Recording: 1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording.
Computer Interface: 1 x USB-C for software updates.

Media:
Cache Recording: 2TB M.2 PCIe NVMe card for cache recording up to 16Gb/s included. Slot supports 60mm 80mm and 110mm cards.
Media:1 x SD card slot
1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI.

Media Type: UHS-I and UHS-II SD cards.
Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
