SDI Video Outputs
2

SDI Monitor Outputs
1

SDI Rates
270Mb, 1.5G, 3G, 6G.

HDMI 2.0 Video Inputs
1

HDMI 2.0 Video Outputs
1

Built in Speaker
Mono

Audio Output
1 x 6.35 mm headphone jack.

Screen
2.2 inch LCD.

Timecode Connections
1 x XLR In, 1 x XLR Out.

Reference Connections
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.

SDI Audio Inputs
16 channels embedded audio.

SDI Audio Outputs
16 channels embedded audio.

HDMI Audio Inputs
8 channels embedded audio.

HDMI Audio Outputs
8 channels embedded audio.

Remote Control
1 x RS-422 In, 1 x RS-422 Out.

Recorder Configuration
Via user interface or
Blackmagic HyperDeck Ethernet Protocol.

Ethernet
1Gb/s

Computer Interface
1 x USB Type-C 3.0 (up to 5Gb/s) for
external drive recording, webcam out,
software configuration and updates.

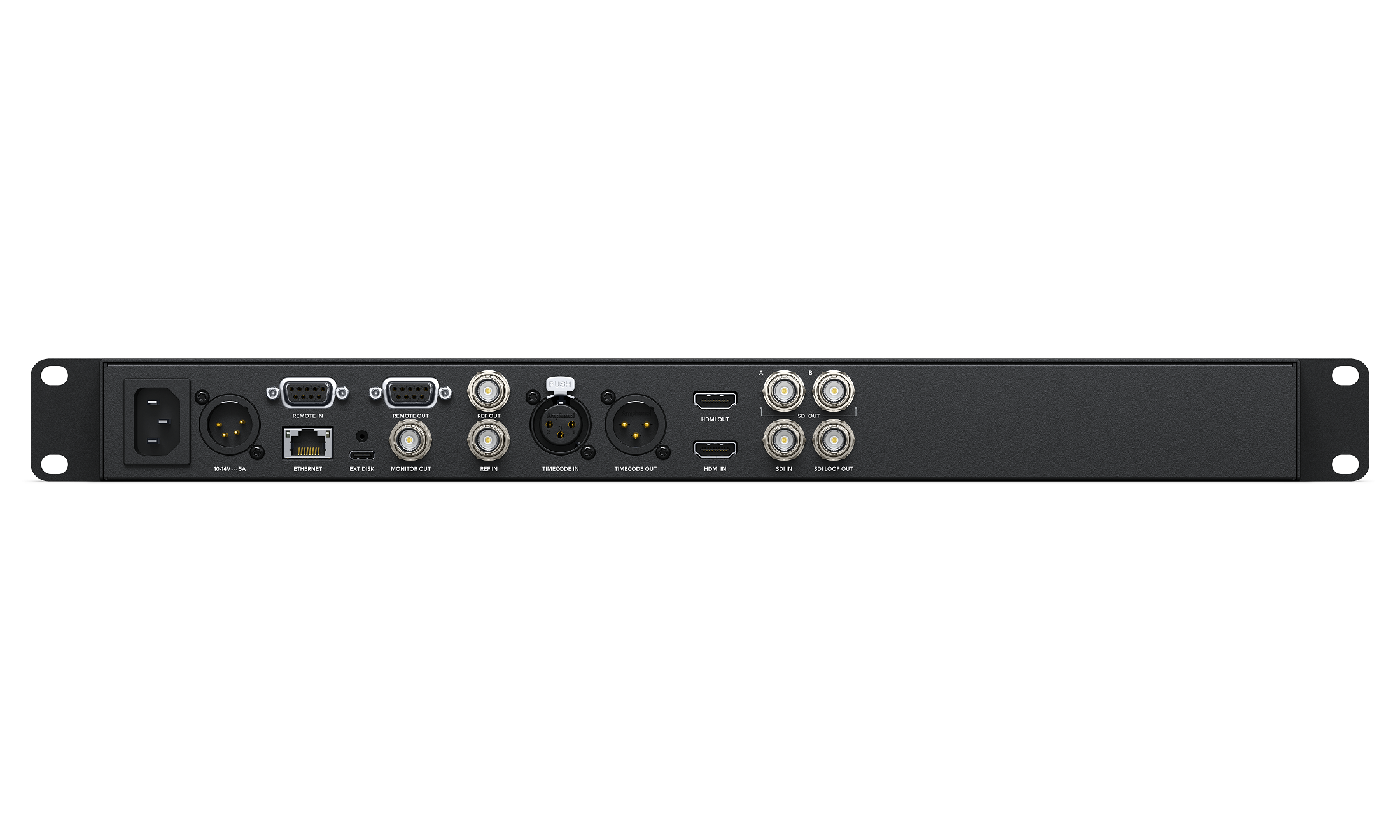

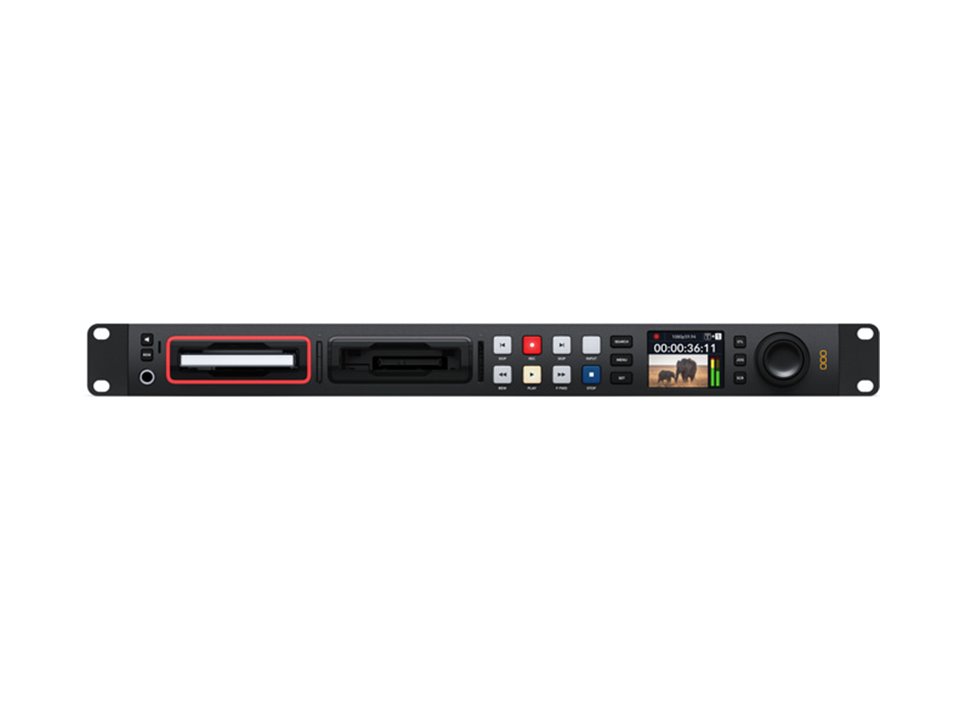

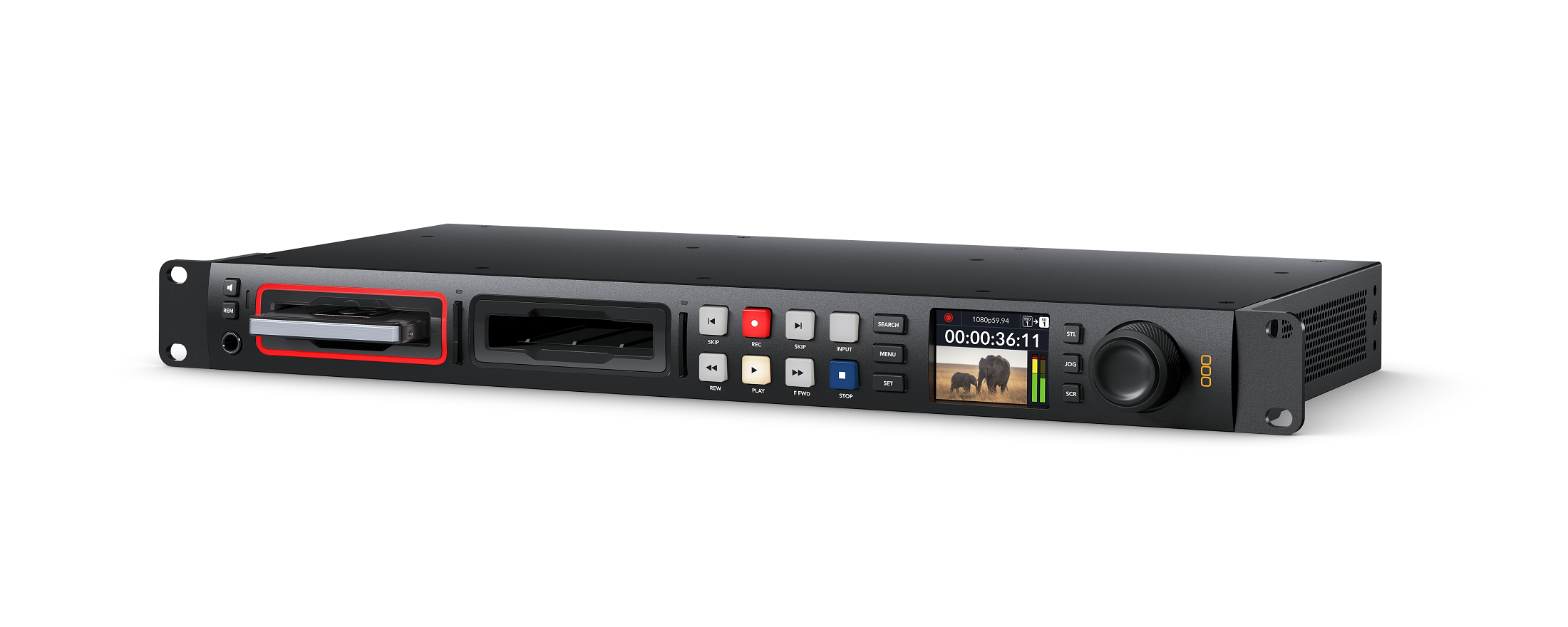

HyperDeck Studio HD Pro
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL

HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25,
2160p29.97, 2160p30

4K DCI Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10,
SMPTE 2084 and SMPTE 2108‑1.

SDI Metadata Support
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.

Supported HDMI Formats
525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30,
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio Sampling
Television standard 24‑bit, 48 kHz sample rate.

Video Sampling
4:2:2 YUV

Color Precision
10‑bit

Color Space
REC 601, REC 709, REC 2020.
33 point 3D LUTS can be applied to SDI monitor out.

HDR Support
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.

Multi Rate Support
Auto detection of SD, HD and 6G‑SDI.

Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media
Media
2 x 2.5 inch disc slots
2 x SD card slots
1 x USB-C 3.0 expansion port
for external recording of SD, HD,
2K DCI, Ultra HD and 4K DCI.

Please click here for a summary of compatible media.

Media Type
SATA-II or SATA-III 2.5 inch solid state media.
UHS-I and UHS-II SD cards.

Media Format
Can format media to ExFAT (Windows/Mac)
or HFS+ (Mac) file systems.

Supported Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p30. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 30fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
