Description

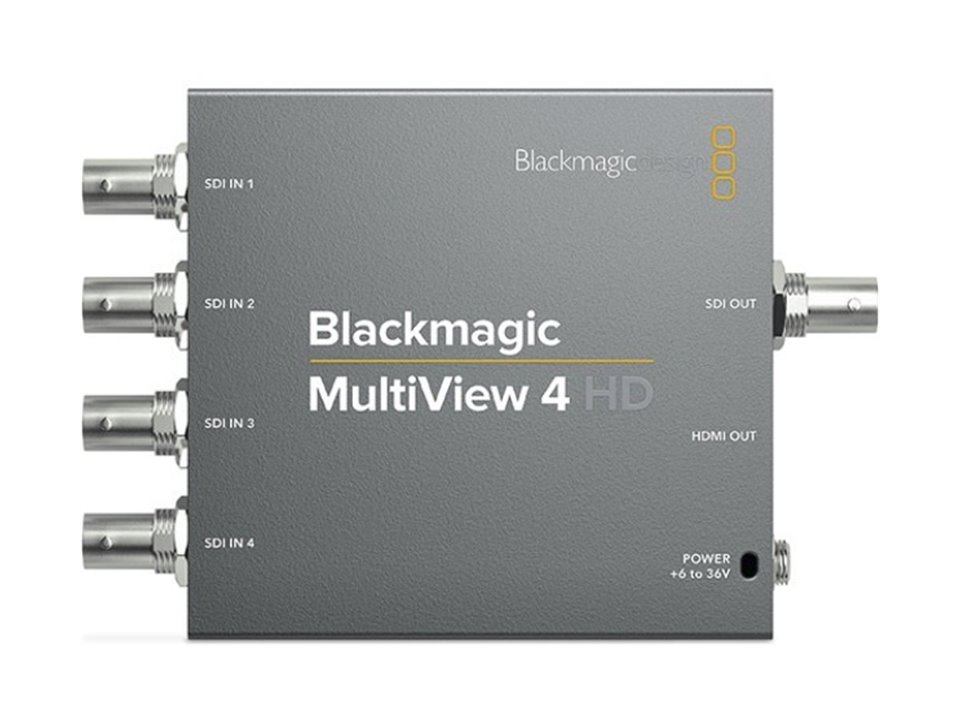

Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any combination of SD and HD formats and frame rates, all at the same time. Each view can display overlays with information such as custom labels, audio meters and more. MultiView 4 HD has both SDI and HDMI outputs for monitoring on professional SDI displays, projectors or even big screen televisions!

SDI Video Inputs
4 x 10-bit SD-SDI and HD-SDI.

SDI Video Outputs
1 x HD-SDI.

SDI Rates
270Mb, 1.5G, 3G.

SDI Video Multi View Outputs
1 x 10-bit HD-SDI.

HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.

SDI Reclocking
On all SDI outputs, auto switching between standard definition or high definition.

Reference Input
None

Multi Rate Support
Auto detection of SD or HD.

Updates
USB 2.0 high speed (480Mb/s) interface.

Avecom on virallinen Blackmagic Design jakelija Suomessa.

Configuration
USB 2.0
