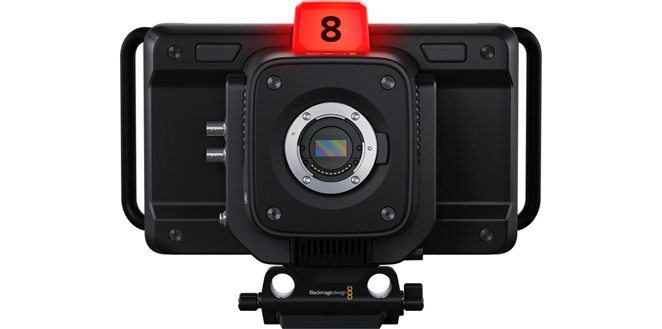

Blackmagic Studio Camera 4K Plus G2:ssa on samat ominaisuudet kuin suurissa studiokameroissa.
Lisäksi digitaalisen filmikameran dynaamisen alueen ja värienkäsittelyn ansiosta kamerat kestävät erittäin vaikeita valaistusolosuhteita tuotannon aikana. Elokuvamainen kuva ja sensorissa on jopa 25 600 ISO herkkyys. Kameraa voidaan ohjata ja värejä voidaan säätää Atem -ohjelmistolla. Blackmagic RAW -tallennus USB-levyille. Lisävarusteena saatavana tarkennus- ja zoomikahvat.


Camera Features
Effective Sensor Size
17.78mm x 10mm (Four Thirds)

Lens Mount
Active MFT Mount.

Lens Control
Iris, focus, zoom on supported lenses.

Dynamic Range
13 Stops.

Dual Native ISO
0dB and 18dB gain.

Sensitivity at 0dB Gain
f11 with 2160p59.94.

f12 with 2160p50.

at 2,000 lux with 89.9% reflectance.

Signal to Noise Ratio
63dB for 2160p.

Shooting Resolutions
3840 x 2160 (Ultra HD) up to 60 fps.

Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.

Off-speed frame rates up to 60 fps in Ultra HD.

Focus
Auto focus available using compatible lenses.

Screen Dimensions
7 inch 1920 x 1200

Screen Type
LCD capacitive touchscreen.

Screen Brightness
600 nits

Controls
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons,
brightness contrast and peaking dials.

Mounting Options
2 x 1/4 inch tripod mount.

1 x 3/8 inch tripod mount.

Connections
SDI Video Inputs
1

SDI Video Outputs
1

SDI Rates
1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Outputs
1

Analog Audio Input
1 x 3.5mm Stereo Input. Can also be used for Timecode input.

Analog Audio Output
1 x 3.5mm TRRS mini jack for headphones with mic.

Reference Input
Program SDI Input on camera or on Blackmagic Studio Converter.

SDI Audio Output
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16

Remote Control
Remote camera control over SDI, HDMI or USB Ethernet.

Computer Interface
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection.
Software updates using USB‑C Port A.
