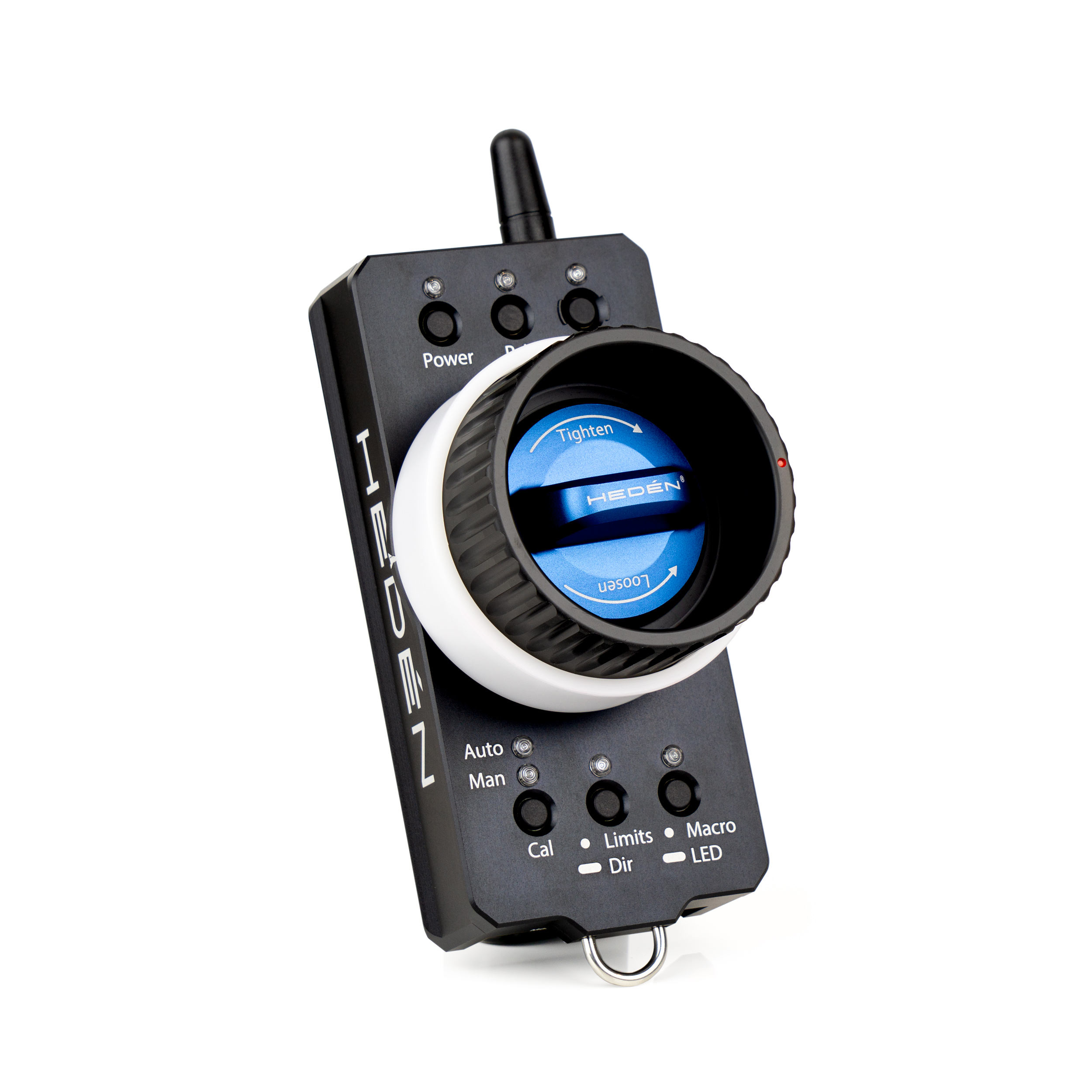

Specifications (YMER-1 Transmitter):
x Length (ex antenna): 152mm / 6” (incl. antenna): 185mm / 7.3”

x Height (ex control knob): 37mm / 1.45” (incl. control knob): 80mm / 3.15”

x Width: 76mm / 3”

x Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market.

x Power source: Sony NP-FM500H compatible battery (not included)

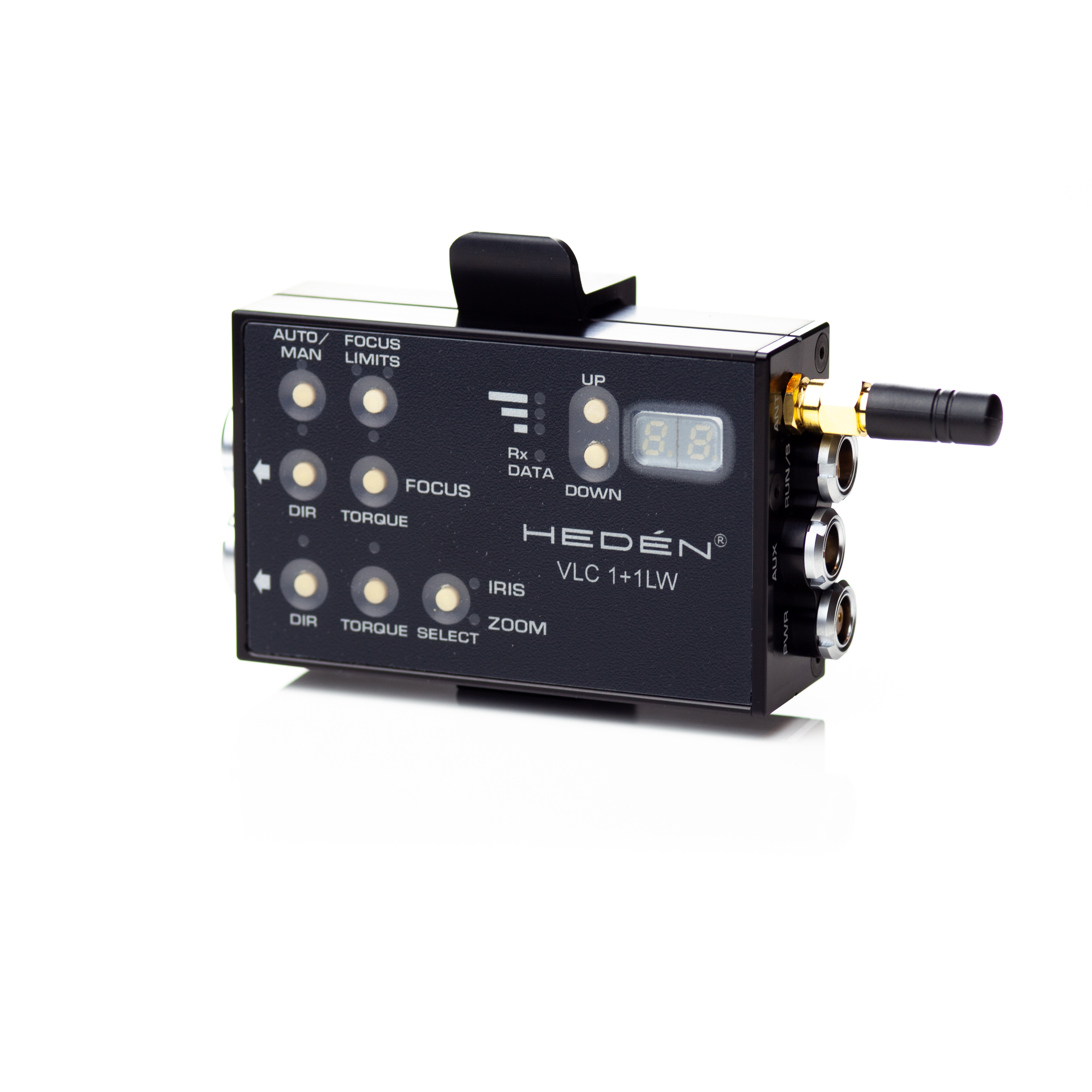

Specifications (YMER 1+1 Reciever):
x Drives up to two Hedén motors

x One channel wireless and one channel wired through LANC

x Length (ex antenna): 100mm / 4”

x Height: 26mm / 1”

x Width: 54mm / 2”

x Weight: Approx. 180 gr / 6.4 oz

x Works with Hedén motors M21VE-L, M26VE, VM35, LM30 and CM55

x Range (Indoors): Approx. 15 – 100 meters (50-330 feet) depending on building materials, interference and other obstacles (Line of sight): 500 meters (1650 feet)

x Power source: 14.4V PTAP



Specifications (Cables):
Motor cable:

x 7 pin Std. male Connectors at both sides

x 60 cm (23.6”) long.



Power cable:

x Std. 2 pin male connector to PTAP male at the other side

x 60 cm (23.6”) long.



The system contains the following:
x 1 x YMER-1 transmitter

x 1 x YMER 1+1 receiver

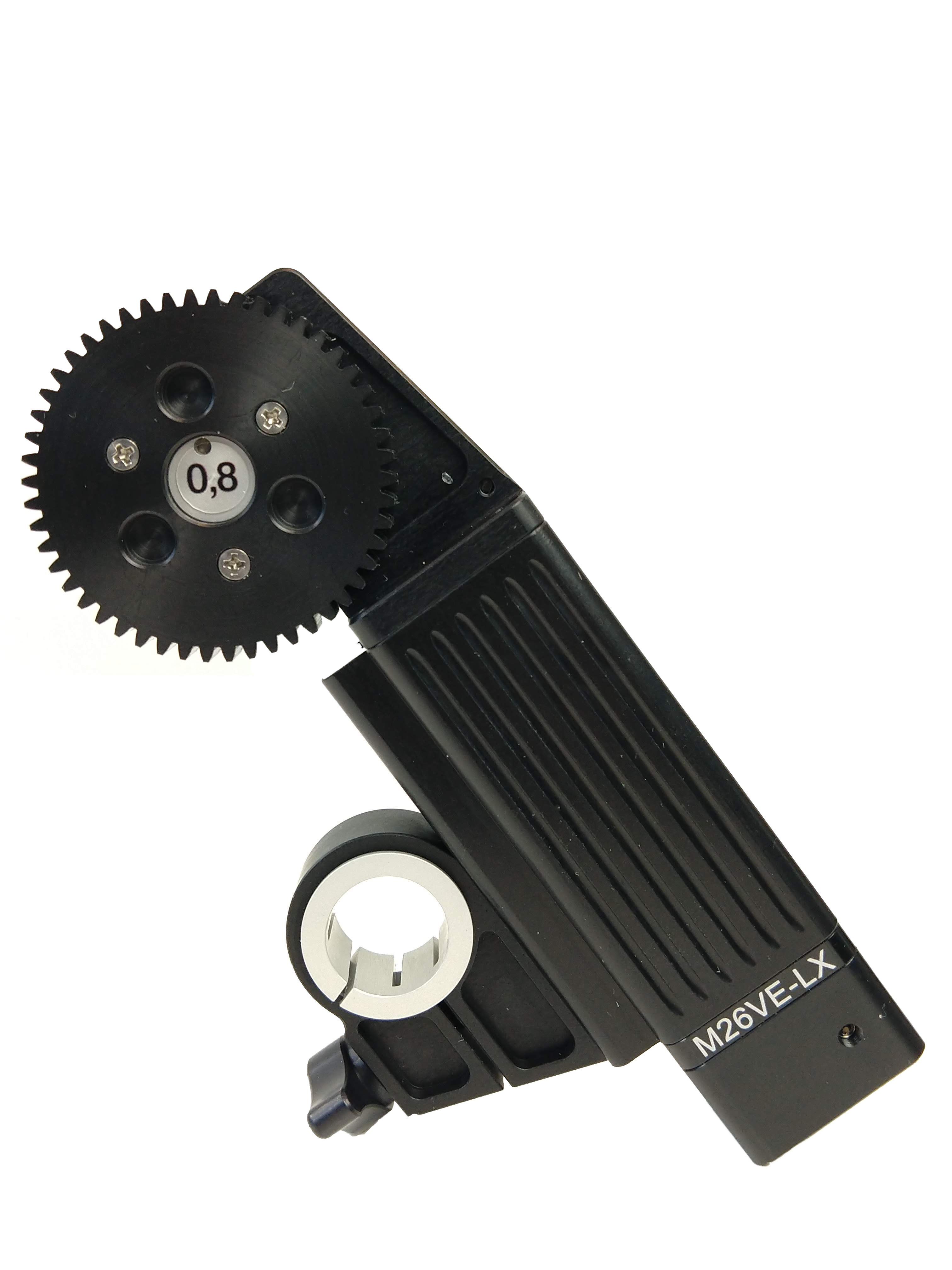

x 1 x Hedén digital servo motor M26VE-LX

x 1 x Gear 0.8 module

x 1 x Bracket with 19mm to 15mm reduction insert

x 1 x White scale ring

x 1 x Power cable

x 1 x Motor cable

x 1 x Hedén neck strap

Sony NP-FM500H compatible battery and charger not included in package
