Network Video Input8 x IP video inputs via NDI®, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1
2160p 59.94, 50, 29.97, 25
1080p: 59.94, 50, 29.97, 24
1080i: 59.94, 50
720p: 59.94, 50, 29.97, 25
SD: 59.94, 50, 25
1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZSupport for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TXNative support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output4 x independent IP video mix outputs via NDI®

DSK Channels2 x DSK channels
Media4 x media players
2 x DDR
2 x GFX
1 x Sound
15 x media buffers
5 x animation buffers
10 x graphic buffers
KeyersIntegrated LiveMatte™ chroma keying technology on all source channels and M/E buses
8 x input keyers
2 x media player keyers
4 x M/E keyers
15 x buffer keyers
COMPIntegrated video composition engine on the switcher and each M/E bus to create, store, and apply layer
configurations and DVE-style motion sequences
16 x configurable COMP presets per bus
Virtual SetsIntegrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLinkIntegrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

ExportExport video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio MixingIntegrated multi-channel audio mixer with support for stereo audio, and DSP's
Local Audio Input1 x 1/4” (6.35 mm) balanced mic
2 x 1/4” (6.35 mm) balanced line
Local Audio Output2 x 1/4” (6.35 mm) balanced line
1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio
Native support for network audio input and output via NDI®
Embedded audio supported for all NDI® input and output video signals
Integrated support3 for Dante™ networking protocol from Audinate®
3Requires Dante Virtual Soundcard license from Audinate (sold separately)
5Requires third-party virtual sound card license (sold separately)
Supported Media File FormatsImport, store, and play back multimedia files, with optional transcoding, including:
Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more
ProcessingVideo: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
LatencyProcessing Latency: ~1.0-1.5 frames
Practical Throughput Latency: 4 frames
TallySupport for network tally via NDI®
MIDISupport for standard MIDI protocol enabling third-party device control
NIC2 x 1 Gigabit NIC

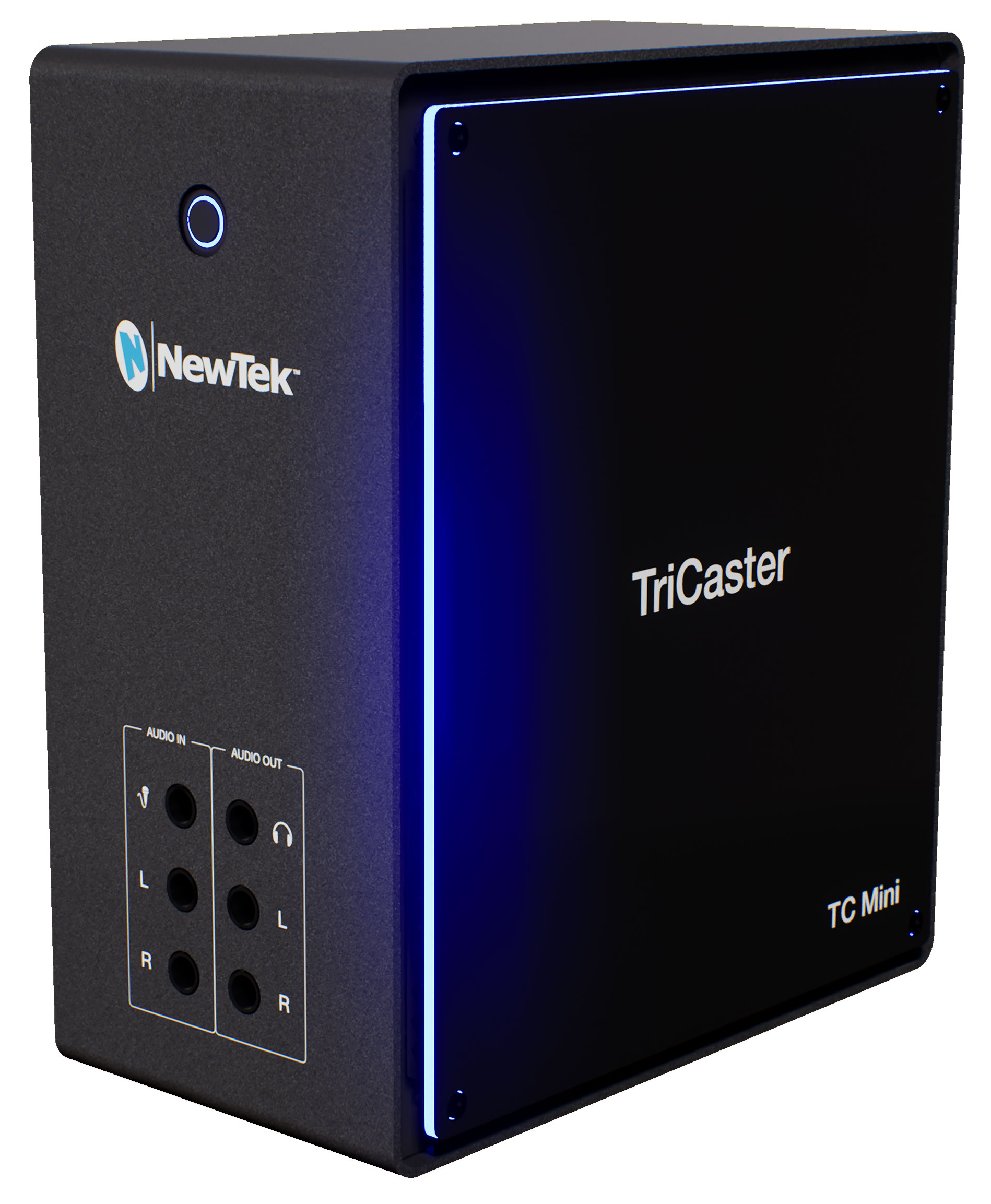

System Physical
System chassis, including adjustable cable retention bracket

4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm)
9 lbs (4.1 kg)
