Aputere F10 Barn Doors
Barn Doorit LS 600 Pro valolle

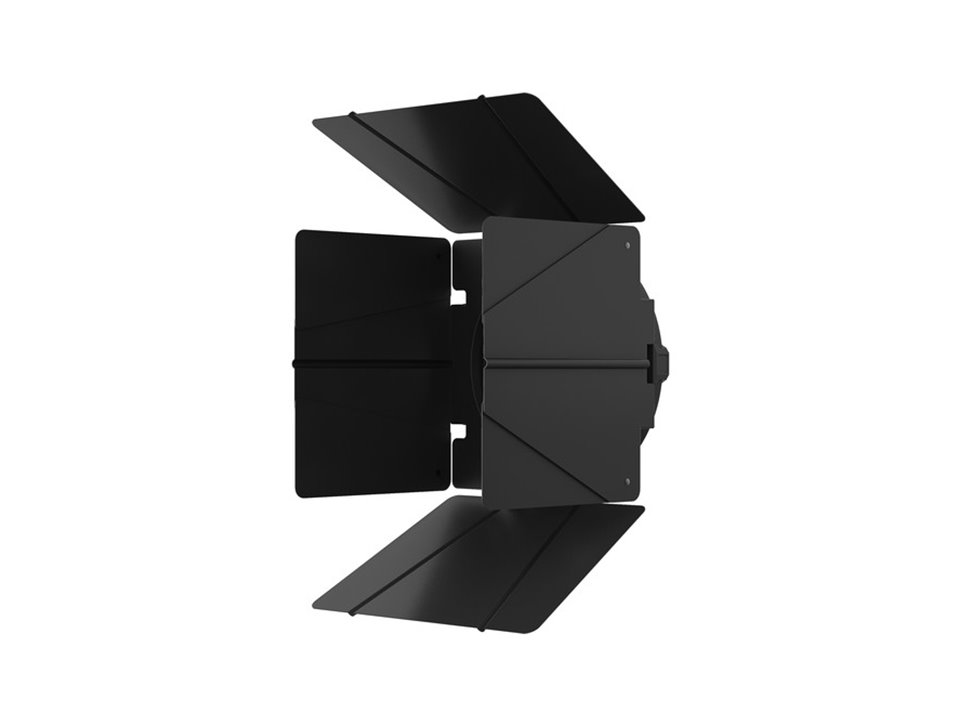

The F10 Barn Doors is a light shaping accessory for use with
larger Bowens-Mount lights and Fresnel modifiers. The F10
Barn Doors are directly compatible with Aputure's 10"" Glass
Fresnel Lens Modifier, the F10 Fresnel, as well as the included
black reflector dish, or Negative Reflector.
The F10 Barn Doors utilizes a large 8-leaf design to properly cut
the light from the large aperture of the F10 Fresnel's 10-inch
front element. The black reflector dish that comes with the F10
Barn Doors is ideal for users who desire precise, clean light
shaping from their barn doors. By minimizing the light source's
size and eliminating any material that would increase the
aperture of the LED, this black reflector helps the F10 Barn
Doors create even sharper shadows.
Rather than the wire-clamp mechanism used by smaller barn
doors typically made for LEDs, the F10 Barndoors features a
heavy-duty drop-in latching mechanism, durable enough for
even the most rigorous of film sets. The F10 Barn Doors also
feature a safety cable and mounting point pre-mounted onto
the barn doors to ensure maximum security.
These barn doors are the industrial-grade accessory for which
the modular LED industry has been waiting.
Accessory Slot Diameter 332.88mm / 13.106in
Accessory Mount Bowens Mount
Dimensions
Barn
Doors w/
Reflector
Dish
Closed
406.76*344*173.15mm /
16.014*13.543*6.817in
Open
898*898*158.3mm /
35.354*35.354*6.232in
Barn
Doors w/o
Reflector
Dish
Closed
406.76*344*74.85mm /
16.014*13.543*2.947in
Open
898*898*60mm /
35.354*35.354*2.362in
Black Reflector Dish
346*340.46*118.8mm /
13.622*13.404*4.677in
Weight
F10 Barn Doors 2640g / 5.820lbs
Black Reflector Dish 1060g / 2.337lbs
Name Quantity
F10 Barn Doors 1
F10 Barn Doors Black Reflector Dish 1
Safety Cable 1
Main Features

• Compatible with Aputure F10 Fresnel: The larger barn
door leaves are better for shaping light, particularly from
large sources.

• 8-Leaf Adjustable Barn Doors: Large leaves with
additional helper flags aid in precisely shaping light.

• Includes Safety Cable: A safety cable and mounting point
come fixed to the light for added security.

• Black Reflector Dish: The included black reflector
features the same drop-in accessory slot as the F10
Fresnel, allowing the F10 Barn Doors to mount directly to
any Bowen Mount fixture.

• Sharper Cuts: Combined with the larger leaves and the
black reflector dish, which minimizes the size of the light
source, the F10 Barn Doors, can provide sharper cuts than
many other LED barn doors.

• Compatible with the Bowens Mount LED lights, such as
the Aputure LS 600d Pro, 300d II, 300x, 120d II, etc.

• Durable Build: The F10 Barn Doors will withstand the test
of time
